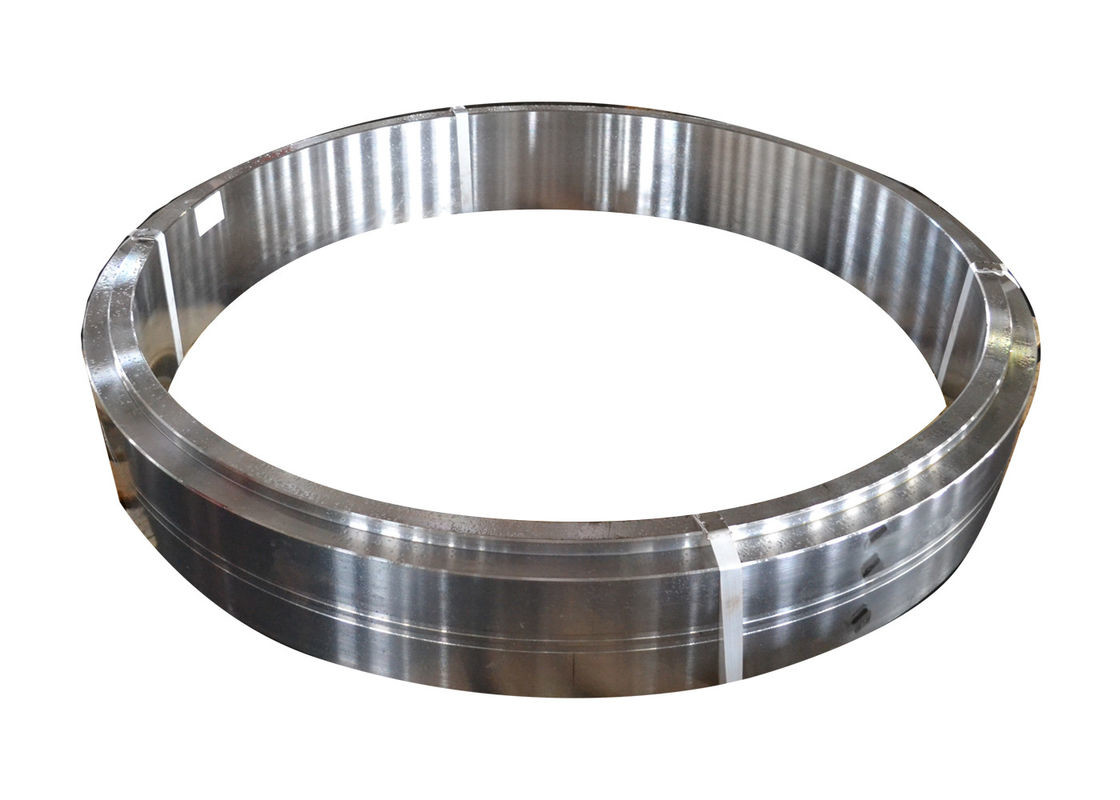

Ball Valve 6.3um Ra 5000mm Forged Steel Rings ASME Standard

Ball Valve 6.3um Ra 5000mm Forged Steel Rings ASME Standard

  • Ball Valve 6.3um Ra 5000mm Forged Steel Rings ASME  Standard
Ball Valve 6.3um Ra 5000mm Forged Steel Rings ASME  Standard
Product Details:
Place of Origin: Jiangsu,China
Brand Name: FY
Certification: PED 3.1 Certificates,ABS,BV,DNV,RINA,GL,LR,NK,KR,CCS
Model Number: FY-0183
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiation
Packaging Details: sea worthy packing like wooden case,iron pallet or as customer's order.
Delivery Time: 15-45 work days
Supply Ability: 3000 Tons Per Month
Contact Now
Detailed Product Description
Name: Forged Steel Rings Surface: 6.3um Ra
Dimensions: Max Length 5000mm Weight: 100Kg-15000Kg
Heat Treatment: Solution Machining: Rough Machining Or Finish Maching
Application: Ball Valve Standard: ASME / ASTM / EN / JIS
High Light:

Ball Valve Forged Steel Rings

,

5000mm Forged Steel Rings

,

5000mm stainless rolled rings

Ball Valve 6.3um Ra 5000mm Forged Steel Rings​


Forged Steel Rings​ Parameters



1. Standard: Ball Valve 6.3um Ra 5000mm Forged Steel Rings
2. Type: Plate,Slip-on,Welding Neck.Thread,Socket weld,Blind
3. Size: 1/2-78 inch (DN15-DN2000)
4. Material: Carbon steel: A105,SS400,SF440 RST37.2,S235JRG2,P250GH,C22.8
  Stainless Steel: F304 F304L F316 F316L 316Ti
5. Surface Treatment Anti-rust Oil, Transparent/Yellow/Black Anti-rust Paint,Zinc,
  Hot dipped Galvanized.
6. Inspection: factory in-house self check or Third Party inspection
7. Packing: No Fumigate or Fumigate Plywood/Wood Pallet or Case
8. Payment Term: L/C at sight or 30days OR T/T
9.Delivery time: Within 30days for 2000tons
10.Supply Capacity: 20000tons per year



Heat Treatment:

Q+T

Normalizing

Or customized

The main manufacturing equipments:

Name&Description

Capacity

Quantity

3600Thydraulic press

Max. single forging in 18T

1

2000T hydraulic press

Max. single forging in 9T

2

800 hydraulic press

Max. single forging in 5T

1

6T electrical hydraulic hammer

Max.single forging in 5T

1

3T electrical hydraulic hammer

Max.single forging in3T

1

Air hammer

Max.single forging from250kg to 1000kg

7

Forging operation machine

Max.singe forging from20T-5T

7

Heat treatment Furance

Max.8000*5000*1500mm

11

CNC driling machine

Max.5000mm

2

Vertical lathe

From 1600 to 5000mm

60

Horizontal lathe

Max.5000mm

70

Band sawing machine

260-1300mm

36


Certfiticates List:

Certificates list of Jiangyin Fangyuan
ISO9001:2008 ISO14001:2004 PED Certificate
ABS Certficate BV Certficate DNV Certificate
RINA  Certficate GL  Certficate LR  Certficate
CCS  Certficate NK  Certficate KR  Certficate
API-6A  Certficate API-17D  Certficate CNAS  Certficate


Company Introduction:
Jiangyin Fangyuan Ringlike Forging Flange Co.Ltd was established in 1993.It’s the member of the Confederation of Chinese Metalforming Industry, Chinese wind energy association, China petroleum & Petro-chemical Equipment Industry Association.

As the leading forging manufacturer in China, our company is specialized in manufacturing forged rings, forged discs, forged shaft ,flanges,valve forging and pressure vessel forgings.

The company covers a total area of 100,000 m2 (square meters), building area of 70,000 m2(square meters). There are 600 staffes in the company. Among them, there are 138 senior engineers and technicians. We also have our own testing center lab. which is able to do chemical analysis, metalloscope test, spectrometer test, mechanical property test and Ut test.
The company has been proved by ISO9001,ISO14001, TUV, API,LRS, GL,BV, ABS,DNV, CCS ,RINA,KR and NK.
