| Place of Origin: | Jiangsu,China |
| Brand Name: | FY |
| Certification: | PED 3.1 Certificates,ABS,BV,DNV,RINA,GL,LR,NK,KR,CCS |
| Model Number: | FY-0183 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiation |
| Packaging Details: | sea worthy packing like wooden case,iron pallet or as customer's order. |
| Delivery Time: | 15-45 work days |
| Supply Ability: | 3000 Tons Per Month |
| Name: | Forged Steel Rings | Surface: | 6.3um Ra |
|---|---|---|---|
| Dimensions: | Max Length 5000mm | Weight: | 100Kg-15000Kg |
| Heat Treatment: | Solution | Machining: | Rough Machining Or Finish Maching |
| Application: | Ball Valve | Standard: | ASME / ASTM / EN / JIS |
| High Light: | 6.3um Ra Scm440 Steel Ring,Steel Forged Rings AISI4140,Sae1045 Hot Forged Rings |
||

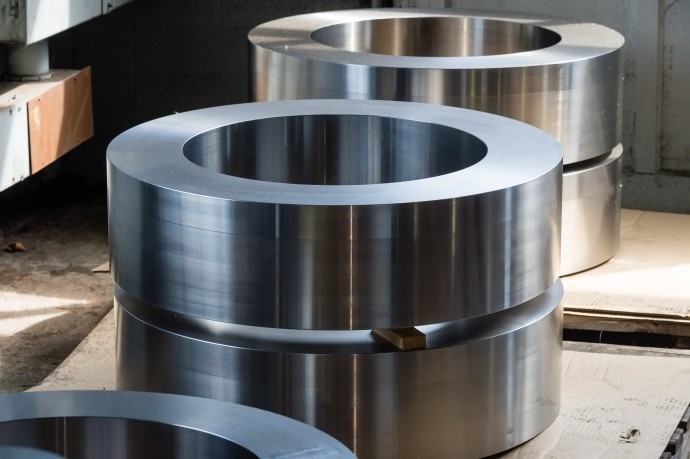

Ball Valve 6.3um Ra 5000mm Forged Steel Rings
Roll forging is a process where round or flat bar stock is reduced in thickness and increased in length. Roll forging is performed using two cylindrical or semi-cylindrical rolls, each containing one or more shaped grooves. A heated bar is inserted into the rolls and when it hits a spot the rolls rotate and the bar is progressively shaped as it is rolled through the machine. The piece is then transferred to the next set of grooves or turned around and reinserted into the same grooves. This continues until the desired shape and size is achieved. The advantage of this process is there is no flash and it imparts a favorable grain structure into the workpiece.
Forged Steel Rings Parameters
| 1. Standard: | Ball Valve 6.3um Ra 5000mm Forged Steel Rings |
| 2. Type: | Plate,Slip-on,Welding Neck.Thread,Socket weld,Blind |
| 3. Size: | 1/2-78 inch (DN15-DN2000) |
| 4. Material: | Carbon steel: A105,SS400,SF440 RST37.2,S235JRG2,P250GH,C22.8 |
| Stainless Steel: F304 F304L F316 F316L 316Ti | |
| 5. Surface Treatment | Anti-rust Oil, Transparent/Yellow/Black Anti-rust Paint,Zinc, |
| Hot dipped Galvanized. | |
| 6. Inspection: | factory in-house self check or Third Party inspection |
| 7. Packing: | No Fumigate or Fumigate Plywood/Wood Pallet or Case |
| 8. Payment Term: | L/C at sight or 30days OR T/T |
| 9.Delivery time: | Within 30days for 2000tons |
| 10.Supply Capacity: | 20000tons per year |
Heat Treatment:
Q+T
Normalizing
Or customized
The main manufacturing equipments:
|
Name&Description |
Capacity |
Quantity |
|
3600Thydraulic press |
Max. single forging in 18T |
1 |
|
2000T hydraulic press |
Max. single forging in 9T |
2 |
|
800 hydraulic press |
Max. single forging in 5T |
1 |
|
6T electrical hydraulic hammer |
Max.single forging in 5T |
1 |
|
3T electrical hydraulic hammer |
Max.single forging in3T |
1 |
|
Air hammer |
Max.single forging from250kg to 1000kg |
7 |
|
Forging operation machine |
Max.singe forging from20T-5T |
7 |
|
Heat treatment Furance |
Max.8000*5000*1500mm |
11 |
|
CNC driling machine |
Max.5000mm |
2 |
|
Vertical lathe |
From 1600 to 5000mm |
60 |
|
Horizontal lathe |
Max.5000mm |
70 |
|
Band sawing machine |
260-1300mm |
36 |
Certfiticates List:
| Certificates list of Jiangyin Fangyuan | ||
| ISO9001:2008 | ISO14001:2004 | PED Certificate |
| ABS Certficate | BV Certficate | DNV Certificate |
| RINA Certficate | GL Certficate | LR Certficate |
| CCS Certficate | NK Certficate | KR Certficate |
| API-6A Certficate | API-17D Certficate | CNAS Certficate |
Company Introduction:
Jiangyin Fangyuan Ringlike Forging Flange Co.Ltd was established in 1993.It’s the member of the Confederation of Chinese Metalforming Industry, Chinese wind energy association, China petroleum & Petro-chemical Equipment Industry Association.
As the leading forging manufacturer in China, our company is specialized in manufacturing forged rings, forged discs, forged shaft ,flanges,valve forging and pressure vessel forgings.
The company covers a total area of 100,000 m2 (square meters), building area of 70,000 m2(square meters). There are 600 staffes in the company. Among them, there are 138 senior engineers and technicians. We also have our own testing center lab. which is able to do chemical analysis, metalloscope test, spectrometer test, mechanical property test and Ut test.
The company has been proved by ISO9001,ISO14001, TUV, API,LRS, GL,BV, ABS,DNV, CCS ,RINA,KR and NK.
Contact Person: Mr.
Address: 51 East Sandun Road,Zhouzhuang Town,Jiangyin City,jiangsu Province
Factory Address:51 East Sandun Road,Zhouzhuang Town,Jiangyin City,jiangsu Province
