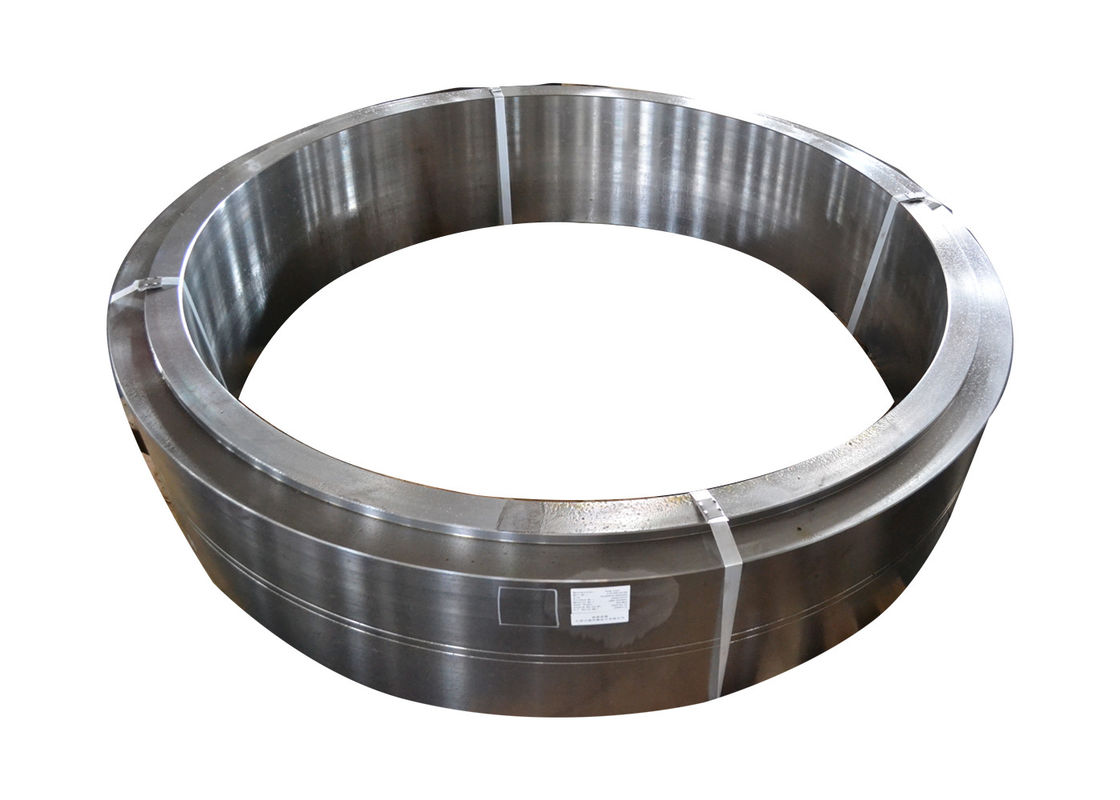

DIN CNC Machining 250cm Hot Forged Rolled Rings

DIN CNC Machining 250cm Hot Forged Rolled Rings

DIN CNC Machining 250cm Hot Forged Rolled Rings
DIN CNC Machining 250cm Hot Forged Rolled Rings
DIN CNC Machining 250cm Hot Forged Rolled Rings
Product Details:
Place of Origin: Jiangsu,China
Brand Name: FY
Certification: PED 3.1 Certificates,ABS,BV,DNV,RINA,GL,LR,NK,KR,CCS
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiation
Packaging Details: sea worthy packing like wooden case,iron pallet or as customer's order.
Delivery Time: 15-45 work days
Supply Ability: 3000 Tons Per Month
Contact Now
Detailed Product Description
Standard: DIN Machining: CNC Machining
Name: Hot Forged Rolled Rings Dimensions: 250cm
Heat Treatment: Solution Application: Ball Valve,Tube Etc
Weight: 20Kg-10000Kg
High Light:

250cm Forged Rolled Rings

,

CNC Machining Forged Rolled Rings

,

DIN Forged Steel Rings

DIN CNC Machining 250cm Hot Forged Rolled Rings





Item Name Forged Steel Rings

General Products

Application/Service Area

Clean Energy: wind power, hydroelectric power and nuclear power,

Fluid Transmission

Ultra High Voltage

Offshore & Marine

Aerospace

Equipment

Mining

Machine Tools

Surface Roughness Ra0.8~Ra6.3
Applicable Material

Stainless Steel: CF8, CF8M, . G-X6CrNiMo1810, G-X7CrNiNb1189, SUS 304, 304L, 316, 316L.

Q345E,S355NL

34CrNiMo4,42CrMo,42CMo4,31 CrMoV9

18CrNiMo7-6,42CrMo6,SCM440



50Mn,S48C,GCr15,GCr15SiMn

45#,35#,20Mn,A105,A694



A266.LF2,316,316L,304,304L,A516LF2,

40Cr,40CrNiMo,35CrMo

carbon steel, steel, aluminum

nickel-base alloy steel, copper alloy, aluminum alloy, titanium alloy

OR According to customer requirement

Standard GB, EN,JIS, ASTM, ASME
Size range Φ≤16m;
Forging Blank Weight ≤ 350 metric tons
Applicable Machining Process CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/ Broaching/Reaming /Grinding/Honing and etc.
Machining Tolerance From 0.005mm-0.01mm-0.1mm
Machined Surface Quality Ra 0.8-Ra3.2 according to customer requirement
Applicable Heat Treatment Normalization, annealing, quenching and tempering, Case Hardening, Nitriding, Carbon Nitriding, Induction Quenching
Applicable Finish Surface Treatment Shot/sand blast, polishing, Surface passivation, Primer Painting , Powder coating, ED- Coating, Chromate Plating, zinc-plate, Dacromat coating, Finish Painting


<1> Details :



Largest OD:2500mm
Largest Weight:15000kg
Surface Finish:3.2um Ra Or As Required.
Forging Reduction Min:3.1 Or As Required
Rought machining or Finish Machining


<2> Element:



C≤ Si≤ Mn≤ P≤ S≤ Ni Cr Mo
0.07% 1% 2.00% 0.045% 0.015% 8%~11% 16.5~18.5% 2.0~2.5




<3> The main manufacturing equipments:

Name&Description

Capacity

Quantity

3600Thydraulic press

Max. single forging in 18T

1

2000T hydraulic press

Max. single forging in 9T

2

800 hydraulic press

Max. single forging in 5T

1

6T electrical hydraulic hammer

Max.single forging in 5T

1

3T electrical hydraulic hammer

Max.single forging in3T

1

Air hammer

Max.single forging from250kg to 1000kg

7

Forging operation machine

Max.singe forging from20T-5T

7

Heat treatment Furance

Max.8000*5000*1500mm

11

CNC driling machine

Max.5000mm

2

Vertical lathe

From 1600 to 5000mm

60

Horizontal lathe

Max.5000mm

70

Band sawing machine

260-1300mm

36


<4> Certfiticates List:

Certificates list of Jiangyin Fangyuan
ISO9001:2008 ISO14001:2004 PED Certificate
ABS Certficate BV Certficate DNV Certificate
RINA  Certficate GL  Certficate LR  Certficate
CCS  Certficate NK  Certficate KR  Certficate
API-6A  Certficate API-17D  Certficate CNAS  Certficate


<5> Company Introduction:

Jiangyin Fangyuan Ringlike Forging Flange Co.Ltd was established in 1993.It’s the member of the Confederation of Chinese Metalforming Industry, Chinese wind energy association, China petroleum & Petro-chemical Equipment Industry Association.

As the leading forging manufacturer in China, our company is specialized in manufacturing forged rings, forged discs, forged shaft ,flanges,valve forging and pressure vessel forgings.

The company covers a total area of 100,000 m2 (square meters), building area of 70,000 m2(square meters). There are 600 staffes in the company. Among them, there are 138 senior engineers and technicians. We also have our own testing center lab. which is able to do chemical analysis, metalloscope test, spectrometer test, mechanical property test and Ut test.
The company has been proved by ISO9001,ISO14001, TUV, API,LRS, GL,BV, ABS,DNV, CCS ,RINA,KR and NK.

The GE,SKF ,ABB and Siemens are our main forgein customers now.I hope that my company could have the opportunity to established a long-term cooperative relationship with you.I hope to receive your inqury soon.


<6> Products process:
DIN CNC Machining 250cm Hot Forged Rolled Rings 0
