|Place of Origin:||Jiangsu,China|
|Certification:||PED 3.1 Certificates,ABS,BV,DNV,RINA,GL,LR,NK,KR,CCS|
|Minimum Order Quantity:||1 PC|
|Packaging Details:||sea worthy packing like wooden case,iron pallet or as customer's order.|
|Delivery Time:||15-45 work days|
|Supply Ability:||3000 Tons Per Month|
|Material:||F316 Stainless Steel||Dimensions:||Max OD Is 2500mm,|
|Machining:||Rough Machining Or Finish Maching||Application:||Pressure Vessel,Ball Valve,Tube Etc|
|Standard:||ASME / ASTM / EN / JIS|
ring rolled forging

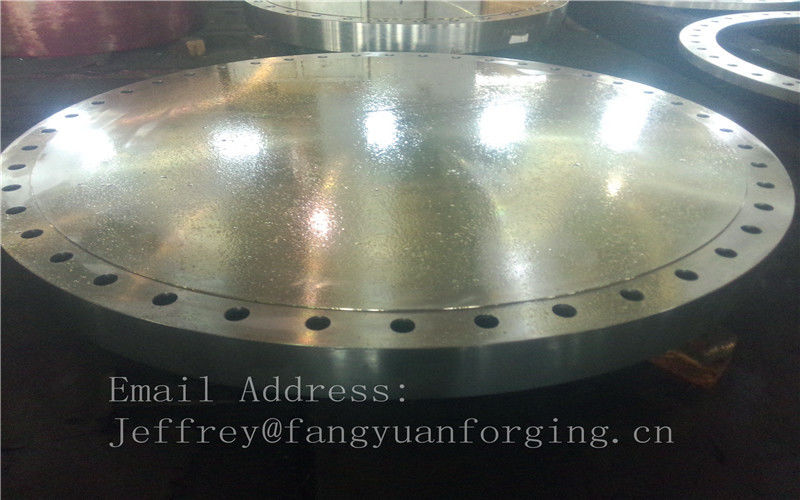

ASTM ASME F316 F306L S31608 SUS316 Stainless Steel Forged Discs Customized
Surface Finish:3.2um Ra Or As Required.
Forging Reduction Min:3.1 Or As Required
Rought machining or Finis Machining
(2) Heat Treatment:
(3) Mechanical Properties:
|Item||Tensile Strength||Yield Strength||Elongation Rate||Reduction Of Area||Hardness|
|F316||≥515 Mpa||≥205 Mpa||≥30%||≥50%||...|
(4) The main manufacturing equipments:
Max. single forging in 18T
2000T hydraulic press
Max. single forging in 9T
800 hydraulic press
Max. single forging in 5T
6T electrical hydraulic hammer
Max.single forging in 5T
3T electrical hydraulic hammer
Max.single forging in3T
Max.single forging from250kg to 1000kg
Forging operation machine
Max.singe forging from20T-5T
Heat treatment Furance
CNC driling machine
From 1600 to 5000mm
Band sawing machine
(5) Certfiticates List:
|Certificates list of Jiangyin Fangyuan|
|ABS Certficate||BV Certficate||DNV Certificate|
|RINA Certficate||GL Certficate||LR Certficate|
|CCS Certficate||NK Certficate||KR Certficate|
|API-6A Certficate||API-17D Certficate||CNAS Certficate|
(6) Company Introduction:
Jiangyin Fangyuan Ringlike Forging Flange Co.Ltd was established in 1993.It’s the member of the Confederation of Chinese Metalforming Industry, Chinese wind energy association, China petroleum & Petro-chemical Equipment Industry Association.
As the leading forging manufacturer in China, our company is specialized in manufacturing forged rings, forged discs, forged shaft ,flanges,valve forging and pressure vessel forgings.
The company covers a total area of 100,000 m2 (square meters), building area of 70,000 m2(square meters). There are 600 staffes in the company. Among them, there are 138 senior engineers and technicians. We also have our own testing center lab. which is able to do chemical analysis, metalloscope test, spectrometer test, mechanical property test and Ut test.
The company has been proved by ISO9001,ISO14001, TUV, API,LRS, GL,BV, ABS,DNV, CCS ,RINA,KR and NK.
The GE,SKF ,ABB and Siemens are our main forgein customers now.I hope that my company could have the opportunity to established a long-term cooperative relationship with you.I hope to receive your inqury soon.
The forgings manufacturing and inspecting process are showed in the following picture :
