| Place of Origin: | Jiangsu,China |
| Brand Name: | FY |
| Certification: | PED 3.1 Certificates,ABS,BV,DNV,RINA,GL,LR,NK,KR,CCS |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiation |
| Packaging Details: | sea worthy packing like wooden case,iron pallet or as customer's order. |
| Delivery Time: | 15-45 work days |
| Supply Ability: | 3000 Tons Per Month |
| Name: | Stainless Steel Forging | Material: | 1.4903 Stainless Steel |
|---|---|---|---|
| Dimensions: | Max OD Is 5000mm | Weight: | 20Kg-12000Kg |
| Heat Treatment: | Quenching+Tempering | Machining: | Rough Machining Or Finish Maching |
| Application: | Steam Turbine Guider Ring | Standard: | ASME / ASTM-2013 |
| High Light: | 1.4903 Stainless Steel Forging,ASTM Stainless Steel Forging,quenching tempering ss forging |
||

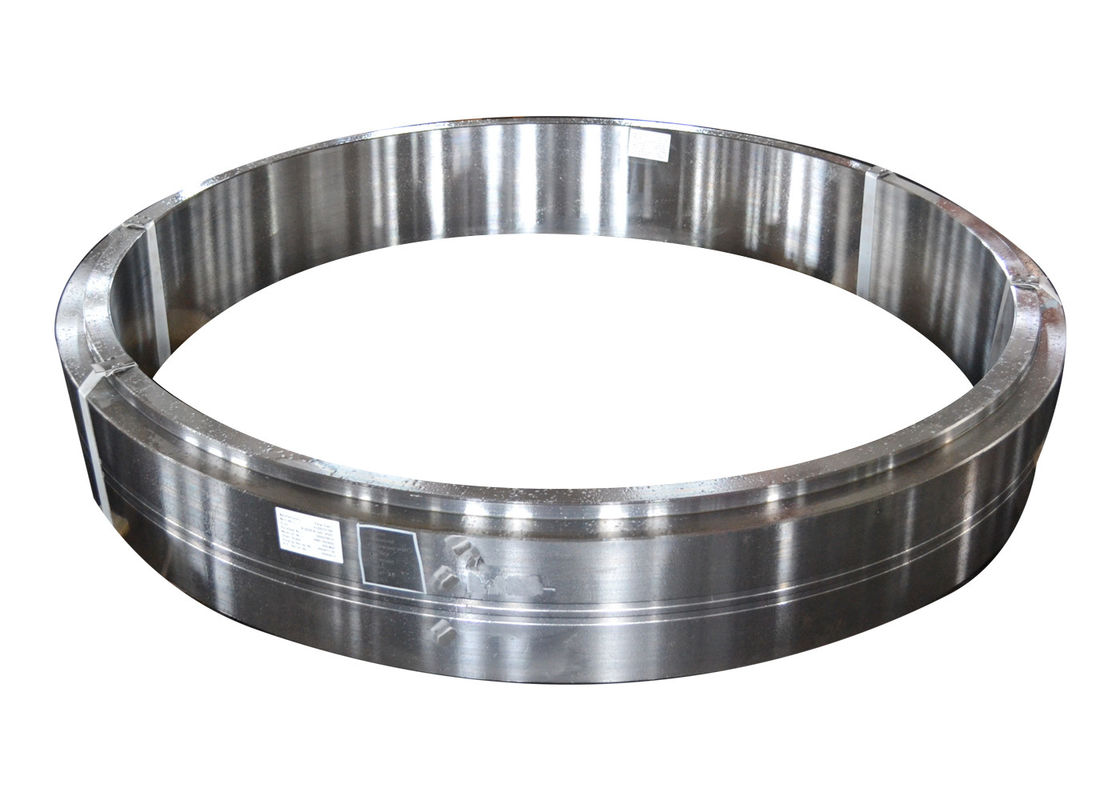

Quenching Tempering Open Die 1.4903 Stainless Steel Forging
Stainless Steel Forging Intoduction
|
Production Facilities
|
Electric-hydraulic hammers with capacity 8 tons,6 tons,3 tons; Feeding Machines with capacity 10 tons, 5 ton |
| Length max. | 3500mm |
| Heat-treatment Furnaces | 5 sets |
| Machining Facilities | 3 sets |
| Product Types |
Step shaft forgings,excentric shaft,roller forgings,rod and bar blank forgings,valve body forging,gear wheel forgings, gear rings,vehicle wheel forgings,oil cylinder forgings,offset axis.
|
| Material Grade |
Stainless Steel,Alloy Steel, Non-magnetic Steel, Carbon Steel,Non-ferrous
|
| Production Process |
Open Die Forging Process
|
| Section Thickness | Up to 800mm |
| Disc Type Band Saws | 6 sets |
| Annual Capacity with Open Die Forging Process |
30,000tons |
1.4903 Element:
| % | C | Si | Mn | P | S | Cr | Ni |
| Min | 0.16 | 12.00 | |||||
| Max | 0.25 | 1.00 | 1.50 | 0.040 | 0.015 | 14.00 | ... |
Heat Treatment:
Quenching And Tempering.Normalizing and Anealing
Certfiticates List:
| Certificates list of Jiangyin Fangyuan | ||
| ISO9001:2008 | ISO14001:2004 | PED Certificate |
| ABS Certficate | BV Certficate | DNV Certificate |
| RINA Certficate | GL Certficate | LR Certficate |
| CCS Certficate | NK Certficate | KR Certficate |
| API-6A Certficate | API-17D Certficate | CNAS Certficate |
The main manufacturing equipments:
|
Name&Description |
Capacity |
Quantity |
|
3600Thydraulic press |
Max. single forging in 18T |
1 |
|
2000T hydraulic press |
Max. single forging in 9T |
2 |
|
800 hydraulic press |
Max. single forging in 5T |
1 |
|
6T electrical hydraulic hammer |
Max.single forging in 5T |
1 |
|
3T electrical hydraulic hammer |
Max.single forging in3T |
1 |
|
Air hammer |
Max.single forging from250kg to 1000kg |
7 |
|
Forging operation machine |
Max.singe forging from20T-5T |
7 |
|
Heat treatment Furance |
Max.8000*5000*1500mm |
11 |
|
CNC driling machine |
Max.5000mm |
2 |
|
Vertical lathe |
From 1600 to 5000mm |
60 |
|
Horizontal lathe |
Max.5000mm |
70 |
|
Band sawing machine |
260-1300mm |
36 |
Company Introduction:
Jiangyin Fangyuan Ringlike Forging Flange Co.Ltd was established in 1993.It’s the member of the Confederation of Chinese Metalforming Industry, Chinese wind energy association, China petroleum & Petro-chemical Equipment Industry Association.
As the leading forging manufacturer in China, our company is specialized in manufacturing forged rings, forged discs, forged shaft ,flanges,valve forging and pressure vessel forgings.
The company covers a total area of 100,000 m2 (square meters), building area of 70,000 m2(square meters). There are 600 staffes in the company. Among them, there are 138 senior engineers and technicians. We also have our own testing center lab. which is able to do chemical analysis, metalloscope test, spectrometer test, mechanical property test and Ut test.
The company has been proved by ISO9001,ISO14001, TUV, API,LRS, GL,BV, ABS,DNV, CCS ,RINA,KR and NK.
The GE,SKF ,ABB and Siemens are our main forgein customers now.I hope that my company could have the opportunity to established a long-term cooperative relationship with you.I hope to receive your inqury soon.
Products process:
The forgings manufacturing and inspecting process are showed in the following picture :
Address: 51 East Sandun Road,Zhouzhuang Town,Jiangyin City,jiangsu Province
Factory Address:51 East Sandun Road,Zhouzhuang Town,Jiangyin City,jiangsu Province
