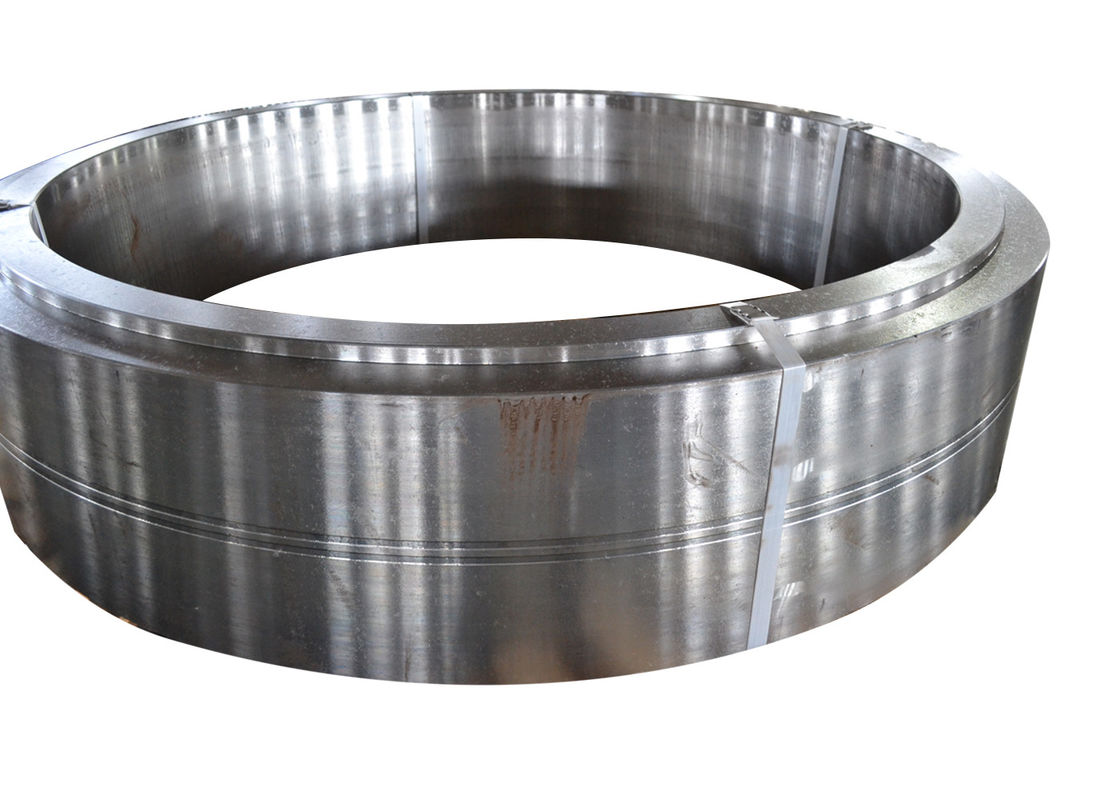

Metallurgy ASME SUS302 1.4307 Forged Steel Rings

Metallurgy ASME SUS302 1.4307 Forged Steel Rings

  • Metallurgy ASME SUS302 1.4307 Forged Steel Rings
  • Metallurgy ASME SUS302 1.4307 Forged Steel Rings
Metallurgy ASME SUS302 1.4307 Forged Steel Rings
Product Details:
Place of Origin: Jiangsu,China
Brand Name: FY
Certification: PED 3.1 Certificates,ABS,BV,DNV,RINA,GL,LR,NK,KR,CCS
Model Number: FY-0014
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiation
Packaging Details: sea worthy packing like wooden case,iron pallet or as customer's order.
Delivery Time: 15-45 work days
Supply Ability: 3000 Tons Per Month
Contact Now
Detailed Product Description
Name: Forged Steel Rings Material: SUS302 1.4307 Stainless Steel
Dimensions: Max OD Is 5000mm, Weight: 20Kg-12000Kg
Heat Treatment: Quenching+Tempering Machining: Rough Machining Or Finish Maching
Application: Metallurgy Standard: GB/JIS/DIN/ASTM
High Light:

1.4307 Forged Steel Rings

,

SUS302 Forged Steel Rings

,

SUS302 metal forging

Metallurgy ASME SUS302 1.4307 Forged Steel Rings



Forged Steel Rings Application



Forging production is widely used in metallurgy, mining, automobile, tractor, harvesting machinery, petroleum, chemical industry, aviation, aerospace, weapons and other industrial sectors



Forged Steel Rings Details



Material Stainless steel: SUS F304L SUSF316L SS321
Standard JIS B2220
Surface Rust-proof oil, Black, Yellow, Galvanized
Type Welding Neck/Plate
Flange facing Raised face , Flat face, Ring Joint face,etc
Size DN10-DN1500
Process Free forging, plate cutting
Pressure JIS :20K-40K / 5K-10K / 10K-40K
Connection Threaded /Welding
Technical Forged
Package Wooden case,Cartons, Pallets or crates according to buyer's requirements.
Delivery It depend on demand quantity
Certificate TUV, ISO9001
Applications Steam, air, gas and oil pipes or for many other fluids


SUS302 Element:

C:≤0.15% Si:≤1.00%
Mn:≤2.00% P≤0.045%
S≤0.035% Ni:8%~10%
Cr:17.0~19%


Heat Treatment:
Solution

Mechanical Properties:

Material Yield Strength Tensile Strength Elongation After facture A% Reduction in area Z% Hardness
SUS302 206 Mpa 520Mpa 40 60 ≤187HB


Certfiticates List:

Certificates list of Jiangyin Fangyuan
ISO9001:2008 ISO14001:2004 PED Certificate
ABS Certficate BV Certficate DNV Certificate
RINA  Certficate GL  Certficate LR  Certficate
CCS  Certficate NK  Certficate KR  Certficate
API-6A  Certficate API-17D  Certficate CNAS  Certficate



Company Introduction:

Jiangyin Fangyuan Ringlike Forging Flange Co.Ltd was established in 1993.It’s the member of the Confederation of Chinese Metalforming Industry, Chinese wind energy association, China petroleum & Petro-chemical Equipment Industry Association.

As the leading forging manufacturer in China, our company is specialized in manufacturing forged rings, forged discs, forged shaft ,flanges,valve forging and pressure vessel forgings.

The company covers a total area of 100,000 m2 (square meters), building area of 70,000 m2(square meters). There are 600 staffes in the company. Among them, there are 138 senior engineers and technicians. We also have our own testing center lab. which is able to do chemical analysis, metalloscope test, spectrometer test, mechanical property test and Ut test.
The company has been proved by ISO9001,ISO14001, TUV, API,LRS, GL,BV, ABS,DNV, CCS ,RINA,KR and NK.

The GE,SKF ,ABB and Siemens are our main forgein customers now.I hope that my company could have the opportunity to established a long-term cooperative relationship with you.I hope to receive your inqury soon.
