Carbon Steel Tolerance 0.001mm 3.2um Ra Forged Disc

Carbon Steel Tolerance 0.001mm 3.2um Ra Forged Disc

  • Carbon Steel Tolerance 0.001mm 3.2um Ra Forged Disc
Carbon Steel Tolerance 0.001mm 3.2um Ra Forged Disc
Product Details:
Place of Origin: China
Brand Name: FY
Certification: PED Certificates,ABS,BV,DNV,RINA,GL,LR,NK,KR,CCS
Model Number: FY-0017
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: sea worthy packing like wooden case,iron pallet or as customer's order.
Delivery Time: 15-45 days
Supply Ability: 6000 Tons Per Month
Contact Now
Detailed Product Description
Name: Ra Forged Disc MaterialAlloy Steel 42CrMo4: Carbon Steel,Alloy Steel,Stainless Steel
Dimensions: Max OD Is 2500mm, Weight: 60Kg-12000Kg
Heat Treatment: Normalizing,Quenching And Tempering Machining: Rough Machining Or Finish Maching
Application: Pressure Vessel,Ball Valve,Tube Etc Tolerance: 0.001mm
High Light:

3.2um Ra Forged Disc

,

Tolerance 0.001mm Forged Disc

,

3.2um Ra forged gear blanks

Carbon Steel Tolerance 0.001mm 3.2um Ra Forged Disc



Introduction



Production Range Machining: CNC Machining/ Lathing/ Milling/ Turning/ Drilling/ Tapping/ Broaching etc.

Casting: Investment/Presicion Casting/ Silica Sol Lost Wax Casting

Forging/ Stamping/ Punching

Material Copper alloy

Brass: HPb59-1, CuZn39Pb1/2/3, CuZn40, C36000, C37710, C67400, etc.

Aluminum Bronze: QAl11-6-6, CuAl10Fe2/3, CuAl10Ni5Fe5, C65500, C95600, C87500, etc.

Tin Bronze: CuPb5Sn5Zn5, C83600, C84400, C86500. etc.

Stainless Steel: SUS304, SUS316, ZG0Cr18Ni12Mo2Ti, SCS14, etc.

Aluminium alloy: 6061, 2024, etc.

Dimension most professional in dimension: 1mm-300mm / 0.03inch-12inch
Tolerance 0.001mm-0.01mm-0.1mm
Weight most professional in weight 0.001kg-15kg
Finish shot/sand blast, heat treatment, annealing, tempering, polishing, anodizing, zinc-plated
MOQ For casting parts: 300kgs

For Machining: 50pcs

Lead Time 30days



Standards:

GB ASTM AISI ASME JIS DIN EN BS



Heat Treatment:

Quenching+ Tempering

NorMalizing

Solution

Or As Required.



Short Introduction:

Largest OD:2500mm

Largest Weight:12000kg

Surface Finish 3.2um Ra Or As Required.

Forging Reduction Min:3.1 Or As Required



The main manufacturing equipments:

Name&Description

Capacity

Quantity

3600Thydraulic press

Max. single forging in 18T

1

2000T hydraulic press

Max. single forging in 9T

2

800 hydraulic press

Max. single forging in 5T

1

6T electrical hydraulic hammer

Max.single forging in 5T

1

3T electrical hydraulic hammer

Max.single forging in3T

1

Air hammer

Max.single forging from250kg to 1000kg

7

Forging operation machine

Max.singe forging from20T-5T

7

Heat treatment Furance

Max.8000*5000*1500mm

11

CNC driling machine

Max.5000mm

2

Vertical lathe

From 1600 to 5000mm

60

Horizontal lathe

Max.5000mm

70

Band sawing machine

260-1300mm

36



Certfiticates List:

Certificates list of Jiangyin Fangyuan
ISO9001:2008 ISO14001:2004 PED Certificate
ABS Certficate BV Certficate DNV Certificate
RINA  Certficate GL  Certficate LR  Certficate
CCS  Certficate NK  Certficate KR  Certficate
API-6A  Certficate API-17D  Certficate CNAS  Certficate



Company Introduction:

Jiangyin Fangyuan Ringlike Forging Flange Co.Ltd was established in 1993.It’s the member of the Confederation of Chinese Metalforming Industry, Chinese wind energy association, China petroleum & Petro-chemical Equipment Industry Association.

As the leading forging manufacturer in China, our company is specialized in manufacturing forged rings, forged discs, forged shaft ,flanges,valve forging and pressure vessel forgings. We could  provide you good quality forgings with competitive pirces.

The company covers a total area of 100,000 m2 (square meters), building area of 70,000 m2(square meters). There are 600 staffes in the company. Among them, there are 138 senior engineers and technicians. We also have our own testing center lab. which is able to do chemical analysis, metalloscope test, spectrometer test, mechanical property test and Ut test.

The company has been proved by ISO9001,ISO14001, TUV, API,LRS, GL,BV, ABS,DNV, CCS ,RINA,KR and NK. For more information ,you can contact me freely.



Product Pictures:

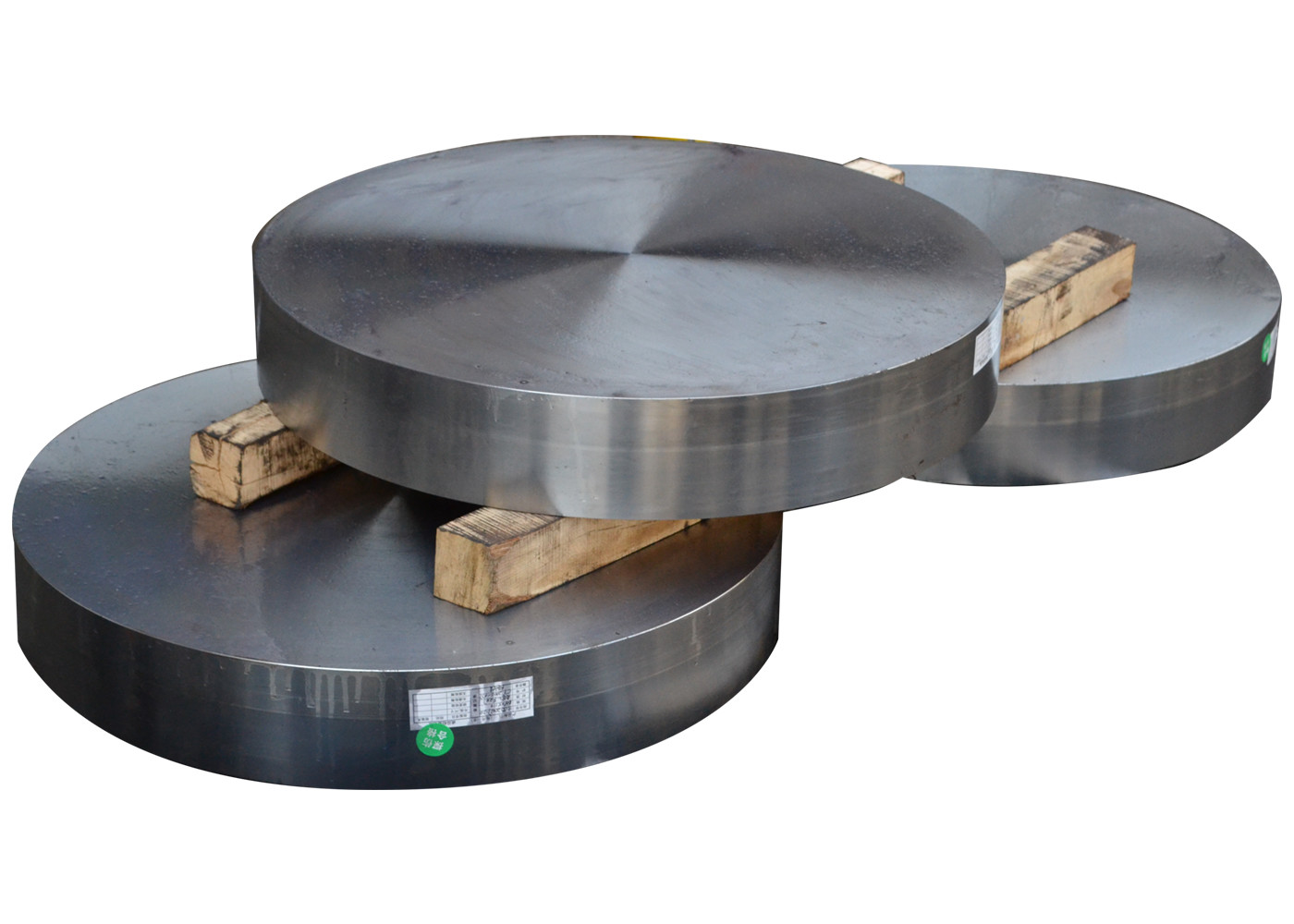

Carbon Steel Tolerance 0.001mm 3.2um Ra Forged Disc 0



Carbon Steel Tolerance 0.001mm 3.2um Ra Forged Disc 1
