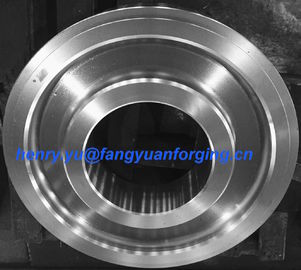

Forged Wheel And Steel Forging Rough Hub Alloy Steel 4130 , 4140 , 8620 , 42CrMo4 , 34CrNiMo6 , 18CrNiMo7-6

Forged Wheel And Steel Forging Rough Hub Alloy Steel 4130 , 4140 , 8620 , 42CrMo4 , 34CrNiMo6 , 18CrNiMo7-6

  • Forged Wheel And Steel Forging Rough Hub Alloy Steel 4130 , 4140 , 8620 , 42CrMo4 , 34CrNiMo6 , 18CrNiMo7-6
Forged Wheel And Steel Forging Rough Hub Alloy Steel 4130 , 4140 , 8620 , 42CrMo4 , 34CrNiMo6 , 18CrNiMo7-6
Product Details:
Place of Origin: CHINA
Brand Name: FY
Certification: ISO/PED EN10204 3.1/3.2
Model Number: H100001
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Iron and wood pallet
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 5000 PCS per month
Contact Now
Detailed Product Description
Steel Forging: Rough Hub Grade: 4140 4340 42CD4 40NCD7
Pinion: 42CD4 Wheel: 40NCD7
Ring Gear: 18CrNiMo7-6 Type: Forging Rough Hub
High Light:

forged part

,

stainless steel forgings

Rough Hub Alloy Steel 4130, 4140,8620,42CrMo4,34CrNiMo6, 18CrNiMo7-6



Rough Hub Alloy Steel Introduction



Roll forging is a process where round or flat bar stock is reduced in thickness and increased in length. Roll forging is performed using two cylindrical or semi-cylindrical rolls, each containing one or more shaped grooves. A heated bar is inserted into the rolls and when it hits a spot the rolls rotate and the bar is progressively shaped as it is rolled through the machine. The piece is then transferred to the next set of grooves or turned around and reinserted into the same grooves. This continues until the desired shape and size is achieved. The advantage of this process is there is no flash and it imparts a favorable grain structure into the workpiece.



Melting process: EF+LF+VD; VOD, AOD, ESR



Heat Treatment:   Alloy Steel treatment: N, A or Q+T;Carbon Steel treatment:N or N+T



Material:

Alloy Steel 4130, 4140,8620,42CrMo4,34CrNiMo6, 18CrNiMo7-6 etc.



Standard: EN,DIN,ASME,ASTM,ASME,API, BS,JIS, ANSI,UNI,GOST



our company is specialized in manufacturing wind power gear rings, wind-tower flanges, wind power main shafts, ring forgings and pressure vessel forgings.



Product Name Forging Rough Hub
Material steel/ alloy steel
Mould process casting or forging
Processing casting, rough machining, QT, finish machining
Heat treatment quanching and tempering
Surface treatment according to customer's requirments
Inspection Raw material inspection, UT,physical property test,dimension inspect
Certification Certification: ISO9001
Application Cement, mining,quarry,electricity and metallurgy industry



Rough Hub Alloy Steel Details

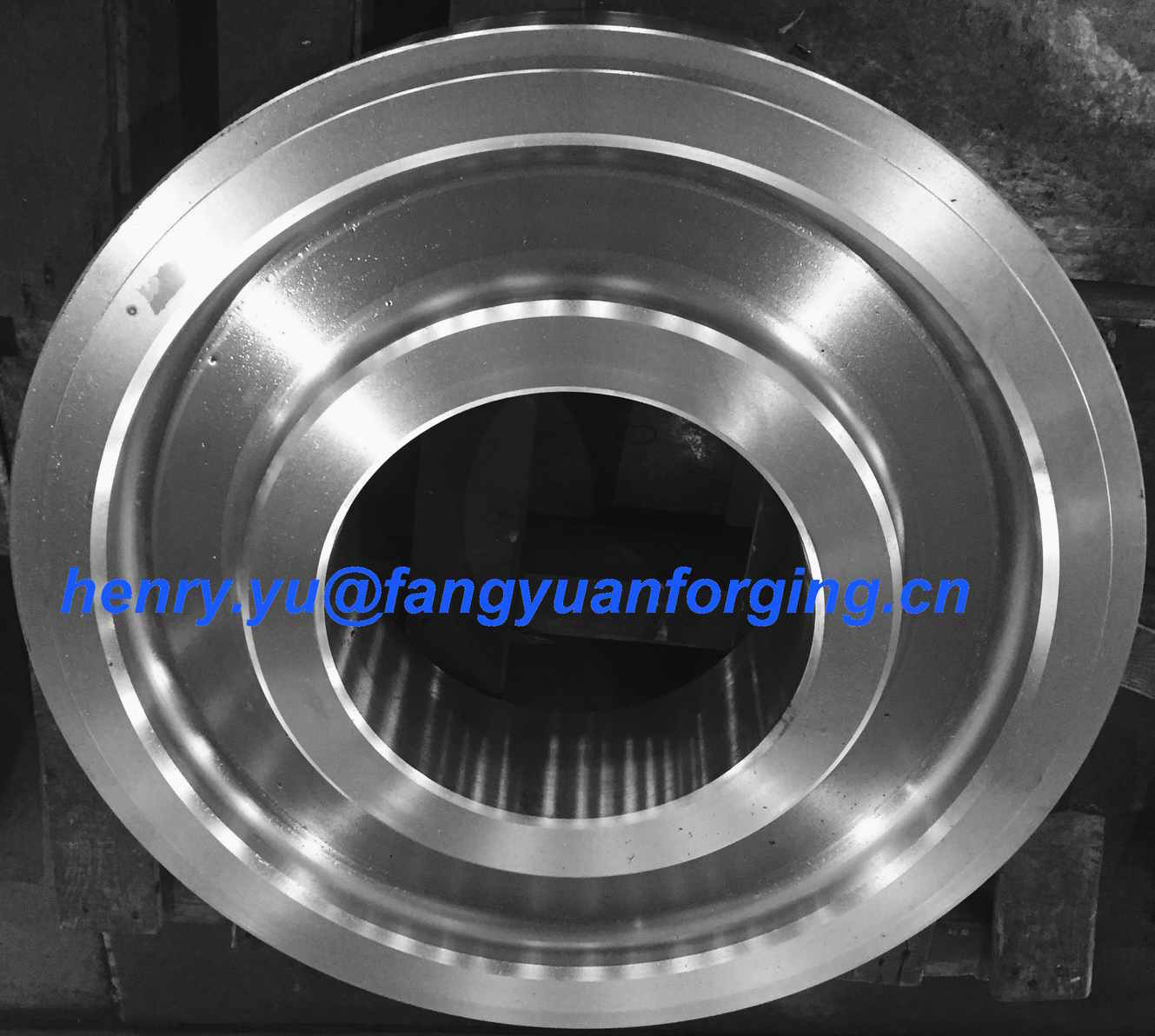

Forged Wheel And Steel Forging Rough Hub Alloy Steel 4130 , 4140 , 8620 , 42CrMo4 , 34CrNiMo6 , 18CrNiMo7-6 0



Process: Raw material inspection →Cutting→ inspection → Preheat → forging → heat treatment → inspection → rough machining → NDT → According to material Tech. heat treatment →Testing → finishing machining →NDT →inspection → packing→ Delivery.



Dimension: OD up to5000mm; Thickness up to 500mm; Height up to 1500mm

And as per customer design requirements
