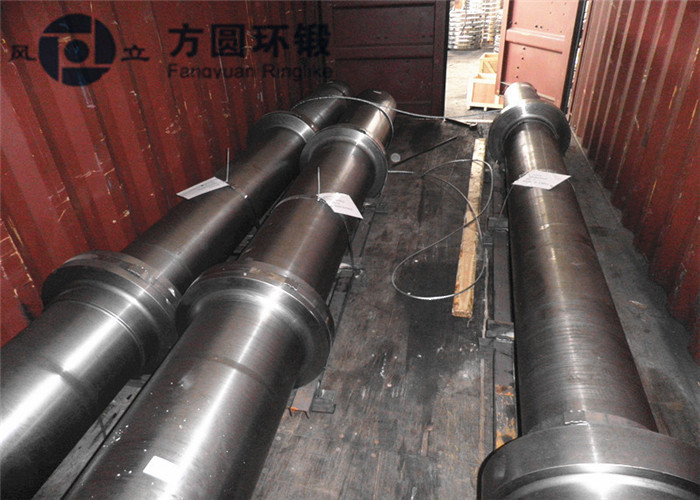

Steam Turbine Main Forged Shaft 42CrMo4 18CrNiMo7-6 34CrNiMo6

Steam Turbine Main Forged Shaft 42CrMo4 18CrNiMo7-6 34CrNiMo6

  • Steam Turbine Main Forged Shaft 42CrMo4 18CrNiMo7-6 34CrNiMo6
  • Steam Turbine Main Forged Shaft 42CrMo4 18CrNiMo7-6 34CrNiMo6
Steam Turbine Main Forged Shaft 42CrMo4 18CrNiMo7-6 34CrNiMo6
Product Details:
Place of Origin: China
Brand Name: FY
Certification: PED Certificates,ABS,BV,DNV,RINA,GL,LR,NK,KR,CCS
Model Number: FY-0005
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: sea worthy packing like wooden case,iron pallet or as customer's order.
Supply Ability: 6000 Tons Per Month
Contact Now
Detailed Product Description
Material: Alloy Steel,Carbon Steel Dimensions: Max OD Is 5000mm,
Weight: 50Kg-14000Kg Heat Treatment: Normalizing Or Q+T
Machining: Rough Machining Application: Mechanical Manufacture,Pressure Vesel
Highlight:

forged steel shaft

,

pinion shaft

Steam Turbine Main Shaft 42CrMo4 18CrNiMo7-6 34CrNiMo6 34CrMo Q+T And Proof Turned UT Test



Material:Carbon steel,alloy steel and stainless steel

Max length:3000mm
Max weight:15000kg
Heat treatment: N,N+T,Q+T or as customer's requirement
Report:3.1 Certificates,UT report,Material report or others.



Products process:

The forgings manufacturing and inspecting process are showed in the following picture :



Steam Turbine Main Forged Shaft 42CrMo4 18CrNiMo7-6 34CrNiMo6 0



Certfiticates List:

Certificates list of Jiangyin Fangyuan
ISO9001:2008 ISO14001:2004 PED Certificate
ABS Certficate BV Certficate DNV Certificate
RINA  Certficate GL  Certficate LR  Certficate
CCS  Certficate NK  Certficate KR  Certficate
API-6A  Certficate API-17D  Certficate CNAS  Certficate




The main manufacturing equipments



Name&Description

Capacity

Quantity

3600Thydraulic press

Max. single forging in 18T

1

2000T hydraulic press

Max. single forging in 9T

2

800 hydraulic press

Max. single forging in 5T

1

6T electrical hydraulic hammer

Max.single forging in 5T

1

3T electrical hydraulic hammer

Max.single forging in3T

1

Air hammer

Max.single forging from250kg to 1000kg

7

Forging operation machine

Max.singe forging from20T-5T

7

Heat treatment Furance

Max.8000*5000*1500mm

11

CNC driling machine

Max.5000mm

2

Vertical lathe

From 1600 to 5000mm

60

Horizontal lathe

Max.5000mm

70

Band sawing machine

260-1300mm

36



Steam Turbine Main Forged Shaft 42CrMo4 18CrNiMo7-6 34CrNiMo6 1

Steam Turbine Main Forged Shaft 42CrMo4 18CrNiMo7-6 34CrNiMo6 2

Test instruments:



The main testing machine list



Item

 Name



Model



Precision



Quantity



Calibration cycle



Remarks

1



UT fault detector

CUD2080



4



1year



2



UT fault detector

PXUT-U1



1



1year



3



UT fault detector

PXUT-U350+



1

1year



4



Yoke flaw detector

DA-400S



1

1year



5



UT fault detector

USM 35X



2

1year



6



UT fault detector

USN 60



1

1year



7



Reading directly spectrographer

SPECTROTEST

TXCO2

B Class

3

1year



8

Reading directly spectrographer

GS 1000

A Class

1

1year



9



HB tester

HB-3000B

±2.5%

1

1year



10



Leeb hardness tester

TH140

±12HLD

4

1year



11



Leeb hardness tester

EQUOTIP3

±12HLD

1

1year



12



Digisplay Rockwell hardness tester

HRS-150

±1.5HRC

1

1year



13



Portable HB tester



±3.0%

1

1year



14

Automatic end quenching test machine

WDZ-02



1





15



Metallurgical Micaroscopy

XJP-6A



1

1year



16



Chemical analysis equipment





1Set

1year





Company Introduction:

Jiangyin Fangyuan Ringlike Forging Flange Co.Ltd was established in 1993.It’s the member of the Confederation of Chinese Metalforming Industry, Chinese wind energy association, China petroleum & Petro-chemical Equipment Industry Association.



As the leading forging manufacturer in China, our company is specialized in manufacturing forged rings, forged discs, forged shaft ,flanges,valve forging and pressure vessel forgings. We could provide you good quality forgings with competitive pirces.



The company covers a total area of 100,000 m2 (square meters), building area of 70,000 m2(square meters). There are 600 staffes in the company. Among them, there are 138 senior engineers and technicians. We also have our own testing center lab. which is able to do chemical analysis, metalloscope test, spectrometer test, mechanical property test and Ut test.



The company has been proved by ISO9001,ISO14001, TUV, API,LRS, GL,BV, ABS,DNV, CCS ,RINA,KR and NK. For more information ,you can contact me freely.



The GE,SKF ,ABB and Siemens are our main forgein customers now.I hope that my company could have the opportunity to established a long-term cooperative relationship with you.I hope to receive your inqury soon.
