Place of Origin: | China |
Brand Name: | FY |
Certification: | PED Certificates,ABS,BV,DNV,RINA,GL,LR,NK,KR,CCS |
Model Number: | FY-0002 |
Minimum Order Quantity: | 1 PC |
---|---|
Price: | Negotiation |
Packaging Details: | sea worthy packing like wooden case,iron pallet or as customer's order. |
Supply Ability: | 6000 Tons Per Month |
Material: | Alloy Steel 34CrNiMo6 | Dimensions: | Max OD Is 4000mm, |
---|---|---|---|
Weight: | 50Kg-15000Kg | Heat Treatment: | Q+T Or As Required |
Machining: | Rough Machining Or Finish Maching | Application: | Internal Gears |
High Light: | 34CrNiMo6 forged wheel blanks,4000mm forged steel rings,4000mm forged wheel blanks |

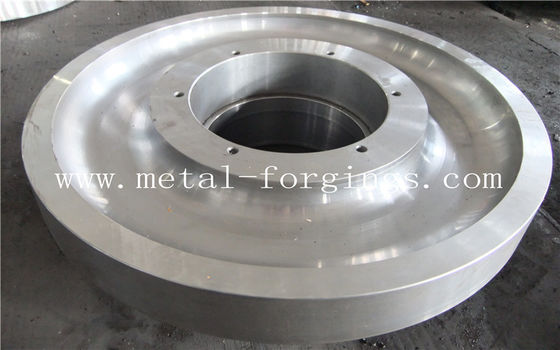

34CrNiMo6 Forged Gear Blank Ring Quenching and Tempering Customized Hardness For Wind power Gear Box
A.Products process:
The forgings manufacturing and inspecting process are showed in the following picture :
B.Certfiticates List:
Certificates list of Jiangyin Fangyuan | ||
ISO9001:2008 | ISO14001:2004 | PED Certificate |
ABS Certficate | BV Certficate | DNV Certificate |
RINA Certficate | GL Certficate | LR Certficate |
CCS Certficate | NK Certficate | KR Certficate |
API-6A Certficate | API-17D Certficate | CNAS Certficate |
C.The main manufacturing equipments:
Name&Description |
Capacity |
Quantity |
3600Thydraulic press |
Max. single forging in 18T |
1 |
2000T hydraulic press |
Max. single forging in 9T |
2 |
800 hydraulic press |
Max. single forging in 5T |
1 |
6T electrical hydraulic hammer |
Max.single forging in 5T |
1 |
3T electrical hydraulic hammer |
Max.single forging in3T |
1 |
Air hammer |
Max.single forging from250kg to 1000kg |
7 |
Forging operation machine |
Max.singe forging from20T-5T |
7 |
Heat treatment Furance |
Max.8000*5000*1500mm |
11 |
CNC driling machine |
Max.5000mm |
2 |
Vertical lathe |
From 1600 to 5000mm |
60 |
Horizontal lathe |
Max.5000mm |
70 |
Band sawing machine |
260-1300mm |
36 |
D.Test instruments:
Item |
Name |
Model |
Precision |
Quantity |
Calibration cycle |
Remarks |
1 |
UT fault detector |
CUD2080 |
|
4 |
1year |
|
2 |
UT fault detector |
PXUT-U1 |
|
1 |
1year |
|
3 |
UT fault detector |
PXUT-U350+ |
|
1 |
1year |
|
4 |
Yoke flaw detector |
DA-400S |
|
1 |
1year |
|
5 |
UT fault detector |
USM 35X |
|
2 |
1year |
|
6 |
UT fault detector |
USN 60 |
|
1 |
1year |
|
7 |
Reading directly spectrographer |
SPECTROTEST TXCO2 |
B Class |
3 |
1year |
|
8 |
Reading directly spectrographer |
GS 1000 |
A Class |
1 |
1year |
|
9 |
HB tester |
HB-3000B |
±2.5% |
1 |
1year |
|
10 |
Leeb hardness tester |
TH140 |
±12HLD |
4 |
1year |
|
11 |
Leeb hardness tester |
EQUOTIP3 |
±12HLD |
1 |
1year |
|
12 |
Digisplay Rockwell hardness tester |
HRS-150 |
±1.5HRC |
1 |
1year |
|
13 |
Portable HB tester |
|
±3.0% |
1 |
1year |
|
14 |
Automatic end quenching test machine |
WDZ-02 |
|
1 |
|
|
15 |
Metallurgical Micaroscopy |
XJP-6A |
|
1 |
1year |
|
16 |
Chemical analysis equipment |
|
|
1Set |
1year |
|
E.Company Introduction:
Jiangyin Fangyuan Ringlike Forging Flange Co.Ltd was established in 1993.It’s the member of the Confederation of Chinese Metalforming Industry, Chinese wind energy association, China petroleum & Petro-chemical Equipment Industry Association. As the leading forging manufacturer in China, our company is specialized in manufacturing forged rings, forged discs, forged shaft ,flanges,valve forging and pressure vessel forgings. We could provide you good quality forgings with competitive pirces. The company covers a total area of 100,000 m2 (square meters), building area of 70,000 m2(square meters). There are 600 staffes in the company. Among them, there are 138 senior engineers and technicians. We also have our own testing center lab. which is able to do chemical analysis, metalloscope test, spectrometer test, mechanical property test and Ut test. The company has been proved by ISO9001,ISO14001, TUV, API,LRS, GL,BV, ABS,DNV, CCS ,RINA,KR and NK. For more information ,you can contact me freely. The GE,SKF ,ABB and Siemens are our main forgein customers now.I hope that my company could have the opportunity to established a long-term cooperative relationship with you.I hope to receive your inqury soon. |
Address: 51 East Sandun Road,Zhouzhuang Town,Jiangyin City,jiangsu Province
Factory Address:51 East Sandun Road,Zhouzhuang Town,Jiangyin City,jiangsu Province
