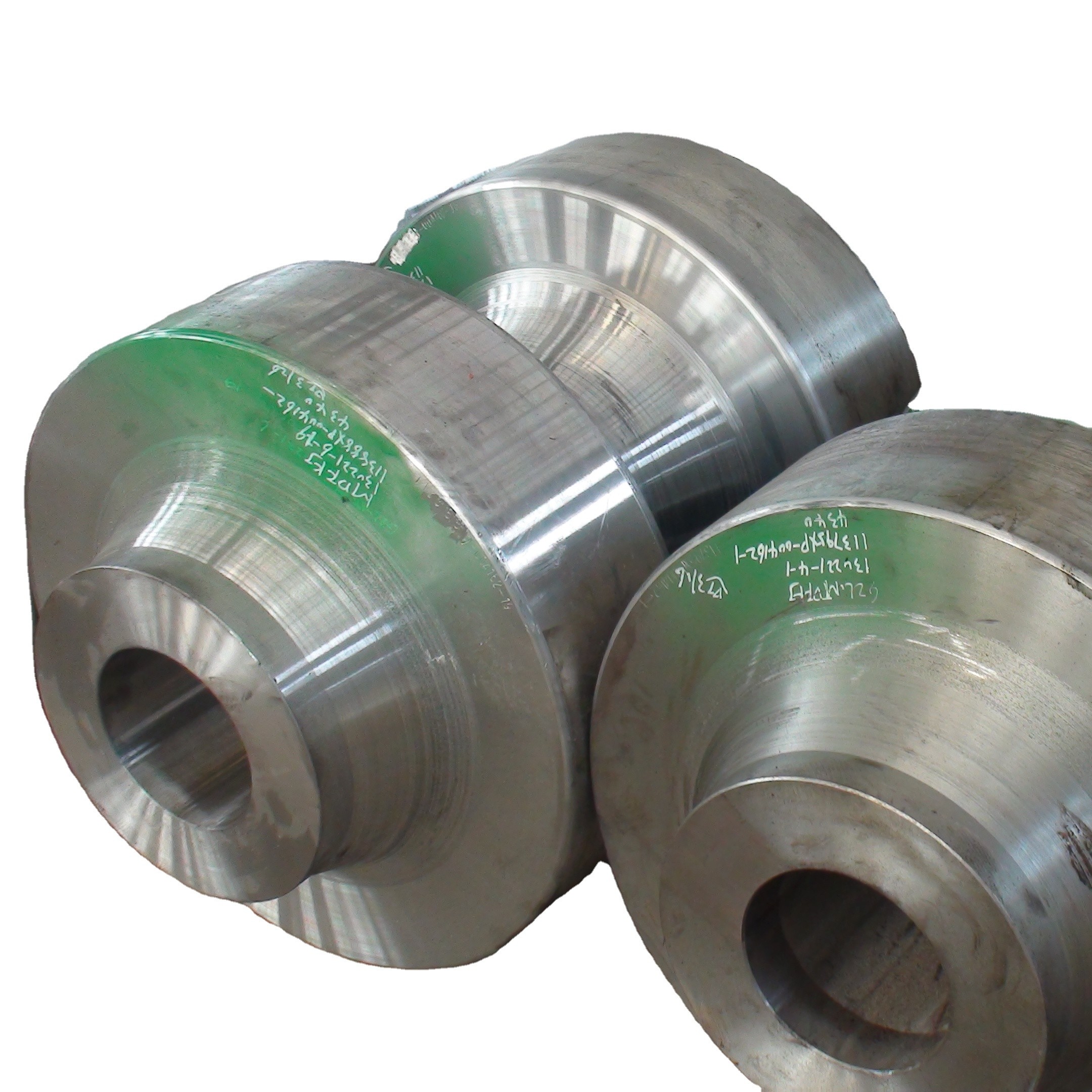

17CrNiMo6 18CrNiMo7-6 Alloy Steel Forgings Ring Part For Gear Ring

17CrNiMo6 18CrNiMo7-6 Alloy Steel Forgings Ring Part For Gear Ring

  • 17CrNiMo6 18CrNiMo7-6 Alloy Steel Forgings Ring Part For Gear Ring
17CrNiMo6 18CrNiMo7-6 Alloy Steel Forgings Ring Part For Gear Ring
Product Details:
Place of Origin: China
Brand Name: FY
Certification: PED Certificates,ABS,BV,DNV,RINA,GL,LR,NK,KR,CCS
Model Number: FY-0141
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: sea worthy packing like wooden case,iron pallet or as customer's order.
Supply Ability: 6000 Tons Per Month
Contact Now
Detailed Product Description
Application: Pressure Vessel,Ball Valve,Tube Etc Type: Alloy Steel Bar
Weight: 20Kg-15000Kg Heat Treatment: Annealing,Normalizing And Tempering
Machining: Rough Machining Or Finish Maching
High Light:

18CrNiMo7-6 Alloy Steel Forgings

,

17CrNiMo6 Alloy Steel Forgings

,

Gear Ring Alloy Steel Forgings

Forging Ring Part With Alloy Steel 17CrNiMo6 Or 18CrNiMo7-6 Forgings For Gear Ring​



At Steel Industries, we forge alloy and carbon steels for a variety of industries ranging from aerospace to nuclear and power. Our customers rely on us to deliver a high-quality product that meets their specific needs in terms of alloy composition and compatibility with the industry requirements related to the steel’s functionality.



Carbon steel is an alloy steel that’s a combination of iron and carbon. Because of its strength and shock resistance, it’s often put to work on construction sites, piping projects and to add extra support to roads.



The key advantage to choosing carbon steel over traditional steel is increased strength. By adding carbon to the forging process the steel undergoes a molecular change that, without getting too scientific, moves around its crystal lattice. The general rule of thumb is the more carbon content the harder the steel.





Delivery condition :

A. Forging, black surface.

B. Forging, peeled surface.

C. Forging, turning surface

D. Forging + turning +quenching and tempering + black surface

E . Forging + turning + quencing and tempering + turning


1. Chemical elements:

C Si Mn P S Cr Ni Mo V
0.15-0.21

max

0.40

0.5-

0.9

<0.015 <0.015

1.5-

1.8

1.4-1.7

0.25-

0.35




2. Heat Treatment:
1.Annealing
2.Normalizing&Tempering

3. Brief introduce:
Largest OD:5000mm
Largest Weight:15000kg
Surface Finish 3.2um Ra Or As Required.
Forging Reduction Min:3.1 Or As Required

4. The main manufacturing equipments:

Name&Description

Capacity

Quantity

3600Thydraulic press

Max. single forging in 18T

1

2000T hydraulic press

Max. single forging in 9T

2

800 hydraulic press

Max. single forging in 5T

1

6T electrical hydraulic hammer

Max.single forging in 5T

1

3T electrical hydraulic hammer

Max.single forging in3T

1

Air hammer

Max.single forging from250kg to 1000kg

7

Forging operation machine

Max.singe forging from20T-5T

7

Heat treatment Furance

Max.8000*5000*1500mm

11

CNC driling machine

Max.5000mm

2

Vertical lathe

From 1600 to 5000mm

60

Horizontal lathe

Max.5000mm

70

Band sawing machine

260-1300mm

36


5. Certfiticates List:

Certificates list of Jiangyin Fangyuan
ISO9001:2008 ISO14001:2004 PED Certificate
ABS Certficate BV Certficate DNV Certificate
RINA  Certficate GL  Certficate LR  Certficate
CCS  Certficate NK  Certficate KR  Certficate
API-6A  Certficate API-17D  Certficate CNAS  Certficate


6. Company Introduction:

Jiangyin Fangyuan Ringlike Forging Flange Co.Ltd was established in 1993.It’s the member of the Confederation of Chinese Metalforming Industry, Chinese wind energy association, China petroleum & Petro-chemical Equipment Industry Association.

As the leading forging manufacturer in China, our company is specialized in manufacturing forged rings, forged discs, forged shaft ,flanges,valve forging and pressure vessel forgings.

The company covers a total area of 100,000 m2 (square meters), building area of 70,000 m2(square meters). There are 600 staffes in the company. Among them, there are 138 senior engineers and technicians. We also have our own testing center lab. which is able to do chemical analysis, metalloscope test, spectrometer test, mechanical property test and Ut test.
The company has been proved by ISO9001,ISO14001, TUV, API,LRS, GL,BV, ABS,DNV, CCS ,RINA,KR and NK.

The GE,SKF ,ABB and Siemens are our main forgein customers now.I hope that my company could have the opportunity to established a long-term cooperative relationship with you.I hope to receive your inqury soon.


7. Products process:
The forgings manufacturing and inspecting process are showed in the following picture :

17CrNiMo6 18CrNiMo7-6 Alloy Steel Forgings Ring Part For Gear Ring 0

17CrNiMo6 18CrNiMo7-6 Alloy Steel Forgings Ring Part For Gear Ring 1
