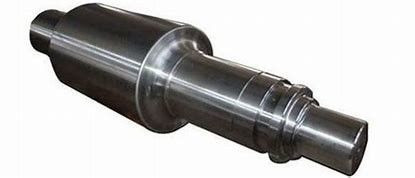

Customized Forged Steel Hollow Shaft With Precision Machining

Customized Forged Steel Hollow Shaft With Precision Machining

  • Customized Forged Steel Hollow Shaft With Precision Machining
Customized Forged Steel Hollow Shaft With Precision Machining
Product Details:
Place of Origin: Jiangsu,China
Brand Name: FY
Certification: PED 3.1 Certificates,ABS,BV,DNV,RINA,GL,LR,NK,KR,CCS
Model Number: FY-0194
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: sea worthy packing like wooden case,iron pallet or as customer's order.
Delivery Time: 15-45 work days
Supply Ability: 3000 Tons Per Month
Contact Now
Detailed Product Description
Product Name: Hollow Shaft Dimensions: Max Length 5000mm
Weight: 50Kg-15000Kg Heat Treatment: Solution
Machining: Rough Machining Or Finish Maching Application: Pressure Vessel,Ball Valve,Tube Etc
Surface Finish: BA/2B/NO.1/NO.2/NO.8/HL/8K/Brush/Mirror Finish
High Light:

Forged Steel Hollow Shaft

,

Precision Forged Steel Hollow Shaft

,

OEM Forged Steel Shaft

Customized Forged Steel Hollow Shaft With Precision Machining



Description Customized Forged Steel Hollow Shaft with Precision Machining
Material (1) carbon steel, stainless steel, alloy steel
(2) aluminum alloy, aluminum, A380, aluminum 6061
(3) zinc alloy ,copper, brass, bronze etc
Standard ISO ,DIN, AISI, ASTM, BS, JIS, etc.
Size Available in all sizes or as customer's drawings
Certification ISO9001:2008
Application Industrial parts, Machinery parts, construction parts, valve parts, train, craft, hydraulic pressure,
Agricultural machinery, Marine hardware, Auto parts, electric power fittings, food machinery, harness fittings, tools, mining machinery parts
Weight Range 0.01kg-200kg
Machining precision ±0.01mm
Surface Treatment Heat Treatment, Polishing, Plating, Machining, Anodizing, shot, sand blasting, zinc plated, oxide, galvanized etc.
Process Lost wax casting process, die casting process, sand casting process. Soluble glass casting process, silicasol casting process
Production Application Metal parts, Mechanical parts, Marine Hardware, Electric power fitting, Construction parts, Pipe Fitting, Hardware, Auto parts, Valve parts, Industrial parts, Agricultural machinery, Hinges, etc
CNC and MC machining Three coordinate measurement machine for testing.
Service OEM / ODM



Products Type Maximum Diameter(mm) Max. length(mm) Maximum weight(ton)
Ring 1500 400 10
Shaft 400 4000 10
Block 3500 / 8
Hollows 1500 3000 8
Flange 4900 400 8
Round bar 2000 8000 15
Unusual shapes 1500 400 8
Forging Ratio ≥ 3.5


Certfiticates List:

Certificates list of Jiangyin Fangyuan
ISO9001:2008 ISO14001:2004 PED Certificate
ABS Certficate BV Certficate DNV Certificate
RINA  Certficate GL  Certficate LR  Certficate
CCS  Certficate NK  Certficate KR  Certficate
API-6A  Certficate API-17D  Certficate CNAS  Certficate


Company Introduction:
Jiangyin Fangyuan Ringlike Forging Flange Co.Ltd was established in 1993.It’s the member of the Confederation of Chinese Metalforming Industry, Chinese wind energy association, and China petroleum & Petro-chemical Equipment Industry Association.

As the leading forging manufacturer in China, our company is specialized in manufacturing forged rings, forged discs, forged shafts, flanges, valve forging, and pressure vessel forgings.

The company covers a total area of 100,000 m2 (square meters), and a building area of 70,000 m2(square meters). There are 600 staffes in the company. Among them, there are 138 senior engineers and technicians. We also have our own testing center lab. which is able to do chemical analysis, metalloscope test, spectrometer test, mechanical property test, and Ut test.
The company has been proved by ISO9001, ISO14001, TUV, API, LRS, GL, BV, ABS, DNV, CCS , RINA, KR and NK.

GESKFABB, and Siemens are our main forgein customers now. I hope that my company could have the opportunity to establish a long-term cooperative relationship with you. I hope to receive your inquiry soon.


Products process:
The forgings manufacturing and inspecting process are showed in the following picture :

Customized Forged Steel Hollow Shaft With Precision Machining 0
