| Place of Origin: | Jiangsu,China |
| Brand Name: | FY |
| Certification: | PED 3.1 Certificates,ABS,BV,DNV,RINA,GL,LR,NK,KR,CCS |
| Model Number: | FY-00113 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiation |
| Packaging Details: | sea worthy packing like wooden case,iron pallet or as customer's order. |
| Delivery Time: | 20-45 work days |
| Supply Ability: | 3000 Tons Per Month |
| Name: | Stainless Steel Forged Ring | Material: | 1.4057 Stainless Steel |
|---|---|---|---|
| Dimensions: | Max OD Is 5000mm, | Weight: | 20Kg-12000Kg |
| Heat Treatment: | Solution | Machining: | Rough Machining Or Finish Maching |
| Highlight: | 1.4057 forged steel ring,12000Kg forged steel flanges,Stainless Steel Forged Ring Finish Maching |
||

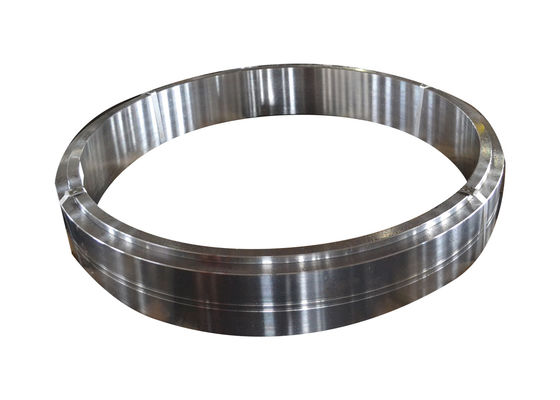

1.4057 Stainless Steel Forged Ring
| Product Name | 1.4057 Stainless Steel Forged Ring |
| Steel type | AISI 630, ASTM 630, ASTM 17-4PH, UNS S17400 |
| JIS SUS630 | |
| Din X5CrNiCU17-04 | |
| EN 1.4542 | |
| Standard | ASTM A564,AMS 5643,ASTM A705,ASTM-A484 |
| Size | Size 1/4" ~ 86" out diameter 13.7mm~2200mm/Customized |
| Finishing | Solution treated + age hardening heat treated ( H900, H1150, H1150D, H1150M, H1075, H1025 etc ) |
| Feature of 630 | High Tensile strength, high hardness after heat treated. |
| Mechanical property |
T.S. (Rm): 1015Mpa, Y.S. (Rp0.2): 906Mpa, EL (A5):17.1%, Z:60.3%, Hardness(HRC): 34.5 |
| Application |
construction field, ships building industry, petroleum,chemical industries, war and electricity industries, food processing and medical industry, boiler heat exchanger,machinery and hardware fields.Stainless steel plate can be made according to the customers requirements. |
| Delivery time | 3-15 working days after contract signed |
| Certificate | ISO, SGS, mill test certificate |
| Package | Standard export seaworthy package,suit for all kinds of transport,or as required. |
Quenching And Tempering.
| Certificates list of Jiangyin Fangyuan | ||
| ISO9001:2008 | ISO14001:2004 | PED Certificate |
| ABS Certficate | BV Certficate | DNV Certificate |
| RINA Certficate | GL Certficate | LR Certficate |
| CCS Certficate | NK Certficate | KR Certficate |
| API-6A Certficate | API-17D Certficate | CNAS Certficate |
|
Name&Description |
Capacity |
Quantity |
|
3600Thydraulic press |
Max. single forging in 18T |
1 |
|
2000T hydraulic press |
Max. single forging in 9T |
2 |
|
800 hydraulic press |
Max. single forging in 5T |
1 |
|
6T electrical hydraulic hammer |
Max.single forging in 5T |
1 |
|
3T electrical hydraulic hammer |
Max.single forging in3T |
1 |
|
Air hammer |
Max.single forging from250kg to 1000kg |
7 |
|
Forging operation machine |
Max.singe forging from20T-5T |
7 |
|
Heat treatment Furance |
Max.8000*5000*1500mm |
11 |
|
CNC driling machine |
Max.5000mm |
2 |
|
Vertical lathe |
From 1600 to 5000mm |
60 |
|
Horizontal lathe |
Max.5000mm |
70 |
|
Band sawing machine |
260-1300mm |
36 |
Jiangyin Fangyuan Ringlike Forging Flange Co.Ltd was established in 1993.It’s the member of the Confederation of Chinese Metalforming Industry, Chinese wind energy association, China petroleum & Petro-chemical Equipment Industry Association.
As the leading forging manufacturer in China, our company is specialized in manufacturing forged rings, forged discs, forged shaft ,flanges,valve forging and pressure vessel forgings.
The company covers a total area of 100,000 m2 (square meters), building area of 70,000 m2(square meters). There are 600 staffes in the company. Among them, there are 138 senior engineers and technicians. We also have our own testing center lab. which is able to do chemical analysis, metalloscope test, spectrometer test, mechanical property test and Ut test.
The company has been proved by ISO9001,ISO14001, TUV, API,LRS, GL,BV, ABS,DNV, CCS ,RINA,KR and NK.
The GE,SKF ,ABB and Siemens are our main forgein customers now.I hope that my company could have the opportunity to established a long-term cooperative relationship with you.I hope to receive your inqury soon.
