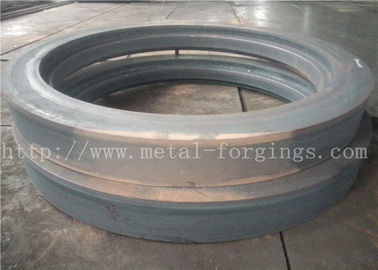

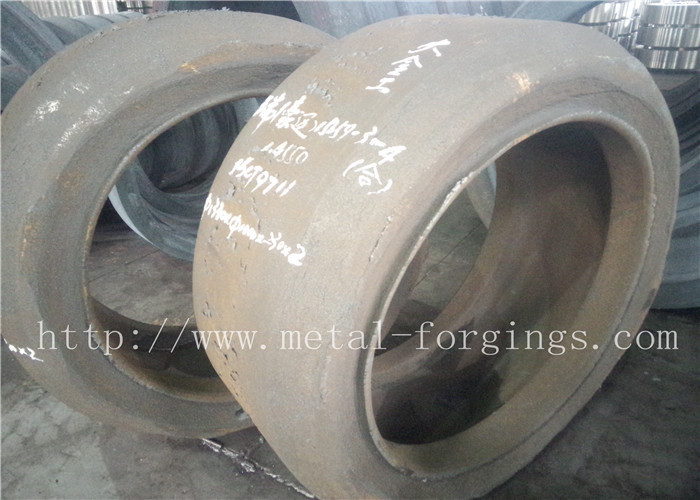

Stainless Steel Forged Steel Products Hot Rolled ID Indent Forged Ring Proof Machined

Stainless Steel Forged Steel Products Hot Rolled ID Indent Forged Ring Proof Machined

  • Stainless Steel Forged Steel Products Hot Rolled ID Indent Forged Ring Proof Machined
  • Stainless Steel Forged Steel Products Hot Rolled ID Indent Forged Ring Proof Machined
  • Stainless Steel Forged Steel Products Hot Rolled ID Indent Forged Ring Proof Machined
Stainless Steel Forged Steel Products Hot Rolled ID Indent Forged Ring Proof Machined
Product Details:
Place of Origin: China
Brand Name: FY
Certification: PED Certificates,ABS,BV,DNV,RINA,GL,LR,NK,KR,CCS
Model Number: FY-0001
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiation
Packaging Details: sea worthy packing like wooden case,iron pallet or as customer's order.
Supply Ability: 6000 Tons Per Month
Contact Now
Detailed Product Description
Material: Alloy Steel 42CrMo4 Dimensions: Max OD Is 5000mm,
Weight: 50Kg-15000Kg Heat Treatment: Q+T Or As Required
Machining: Rough Machining Or Finish Maching Application: Gears
Highlight:

Stainless Steel Forged Steel Products

,

Hot Rolled ID Indent Forged Ring

,

Proof Machined ID Indent Forged Ring

Stainless Steel Alloy Steel Carbon Steel Hot Rolled ID Indent Ring Strange Size Forged Ring Proof Machined



Parameters



Description Stainless Steel Forged Steel Products Hot Rolled ID Indent Forged Ring Proof Machined
Type Ring forging
Application Automotive, Truck,Tractor, Gear, Metal,Building, Railway,Steering,Vehicle ,Wheel,Transmission,Suspension,Brake,Axle,Chassi,Container,Machine,Engine
Processing Forging and Machining
Material Steel, stainless steel,alloy steel,carbon steel
Weight Ranges 0.5kg-100kg
Tolernace ±0.1mm, Controlled by GB 12362 Precision
Design Support Pro-E, UG,SolidWorks,AutoCad, PDF
Quality Control Material, Dimension,Performance,inside defects,Balance test
Standard ASTM,DIN,JIS,ISO,GB standards



Products process:

The forgings manufacturing and inspecting process are showed in the following picture :



Stainless Steel Forged Steel Products Hot Rolled ID Indent Forged Ring Proof Machined 0



The main manufacturing equipments:

Name&Description

Capacity

Quantity

3600Thydraulic press

Max. single forging in 18T

1

2000T hydraulic press

Max. single forging in 9T

2

800 hydraulic press

Max. single forging in 5T

1

6T electrical hydraulic hammer

Max.single forging in 5T

1

3T electrical hydraulic hammer

Max.single forging in3T

1

Air hammer

Max.single forging from250kg to 1000kg

7

Forging operation machine

Max.singe forging from20T-5T

7

Heat treatment Furance

Max.8000*5000*1500mm

11

CNC driling machine

Max.5000mm

2

Vertical lathe

From 1600 to 5000mm

60

Horizontal lathe

Max.5000mm

70

Band sawing machine

260-1300mm

36





Certfiticates List:

Certificates list of Jiangyin Fangyuan
ISO9001:2008 ISO14001:2004 PED Certificate
ABS Certficate BV Certficate DNV Certificate
RINA  Certficate GL  Certficate LR  Certficate
CCS  Certficate NK  Certficate KR  Certficate
API-6A  Certficate API-17D  Certficate CNAS  Certficate



Company Introduction:

Jiangyin Fangyuan Ringlike Forging Flange Co.Ltd was established in 1993.It’s the member of the Confederation of Chinese Metalforming Industry, Chinese wind energy association, China petroleum & Petro-chemical Equipment Industry Association.



As the leading forging manufacturer in China, our company is specialized in manufacturing forged rings, forged discs, forged shaft ,flanges,valve forging and pressure vessel forgings. We could provide you good quality forgings with competitive pirces.



The company covers a total area of 100,000 m2 (square meters), building area of 70,000 m2(square meters). There are 600 staffes in the company. Among them, there are 138 senior engineers and technicians. We also have our own testing center lab. which is able to do chemical analysis, metalloscope test, spectrometer test, mechanical property test and Ut test.



The company has been proved by ISO9001,ISO14001, TUV, API,LRS, GL,BV, ABS,DNV, CCS ,RINA,KR and NK. For more information ,you can contact me freely.



The GE,SKF ,ABB and Siemens are our main forgein customers now.I hope that my company could have the opportunity to established a long-term cooperative relationship with you.I hope to receive your inqury soon.
