18CrNiMo7-6 Forged Round Bar Blanks Anealing Heat Treatment And Rough Turned

Product Details:

Place of Origin:	China
Brand Name:	FY
Certification:	PED Certificates,ABS,BV,DNV,RINA,GL,LR,NK,KR,CCS
Model Number:	FY-0021

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	Negotiation
Packaging Details:	sea worthy packing like wooden case,iron pallet or as customer's order.
Delivery Time:	15-45 days
Supply Ability:	6000 Tons Per Month

Contact Now

Detailed Product Description

MaterialAlloy Steel 42CrMo4:	Alloy Steel	Dimensions:	Max OD Is 2500mm,
Weight:	60Kg-12000Kg	Heat Treatment:	Normalizing,Quenching And Tempering
Machining:	Rough Machining	Application:	Gear Box Etc
High Light:	forged steel shaft , forged steel products

18CrNiMo7-6 Forged Roung Bar Blanks Anealing Heat Treatment And Rough Turned
Material:
18CrNiMo7-6

Forging Heat treatment:

Heat to 1150℃.Hold till uniform.Minimun forging temperature 850℃.
Anealing:Heat to 830℃~850℃,Cool in furnace
Noralising:Heat to 860℃~890℃,Cool in still air
Stress Relieving:630℃~650℃,Cool in still air

Composation:

C:0.15~0.21%

Si≤0.40%

Mn:0.50~0.90%

P≤0.035%

S≤0.035%

Cr:1.50~1.80%

Ni:1.40~1.70%

Mo:0.25~0.35%

Other information:

Largest OD:2500mm
Largest Weight:10000kg
Surface Finish 3.2um Ra Or As Required.
Forging Reduction Min:3.1 Or As Required

The main manufacturing equipments:

Name&Description	Capacity	Quantity
3600Thydraulic press	Max. single forging in 18T	1
2000T hydraulic press	Max. single forging in 9T	2
800 hydraulic press	Max. single forging in 5T	1
6T electrical hydraulic hammer	Max.single forging in 5T	1
3T electrical hydraulic hammer	Max.single forging in3T	1
Air hammer	Max.single forging from250kg to 1000kg	7
Forging operation machine	Max.singe forging from20T-5T	7
Heat treatment Furance	Max.800050001500mm	11
CNC driling machine	Max.5000mm	2
Vertical lathe	From 1600 to 5000mm	60
Horizontal lathe	Max.5000mm	70
Band sawing machine	260-1300mm	36

Certfiticates List:

Certificates list of Jiangyin Fangyuan
ISO9001:2008	ISO14001:2004	PED Certificate
ABS Certficate	BV Certficate	DNV Certificate
RINA Certficate	GL Certficate	LR Certficate
CCS Certficate	NK Certficate	KR Certficate
API-6A Certficate	API-17D Certficate	CNAS Certficate

Company Introduction:

Jiangyin Fangyuan Ringlike Forging Flange Co.Ltd was established in 1993.It’s the member of the Confederation of Chinese Metalforming Industry, Chinese wind energy association, China petroleum & Petro-chemical Equipment Industry Association.

As the leading forging manufacturer in China, our company is specialized in manufacturing forged rings, forged discs, forged shaft ,flanges,valve forging and pressure vessel forgings. We could provide you good quality forgings with competitive pirces.

The company covers a total area of 100,000 m2 (square meters), building area of 70,000 m2(square meters). There are 600 staffes in the company. Among them, there are 138 senior engineers and technicians. We also have our own testing center lab. which is able to do chemical analysis, metalloscope test, spectrometer test, mechanical property test and Ut test.

The company has been proved by ISO9001,ISO14001, TUV, API,LRS, GL,BV, ABS,DNV, CCS ,RINA,KR and NK. For more information ,you can contact me freely.

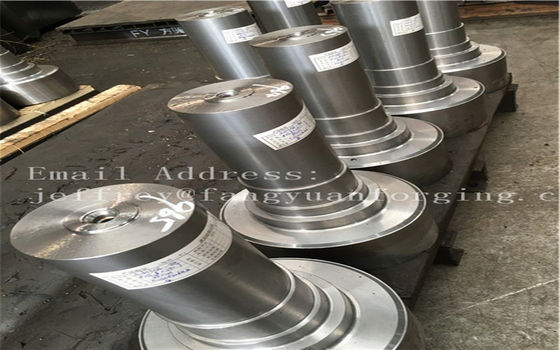

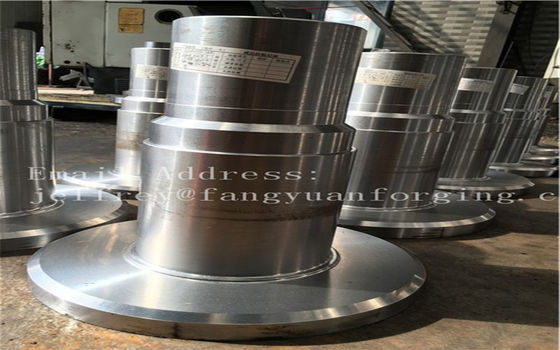

Production Pictures:
