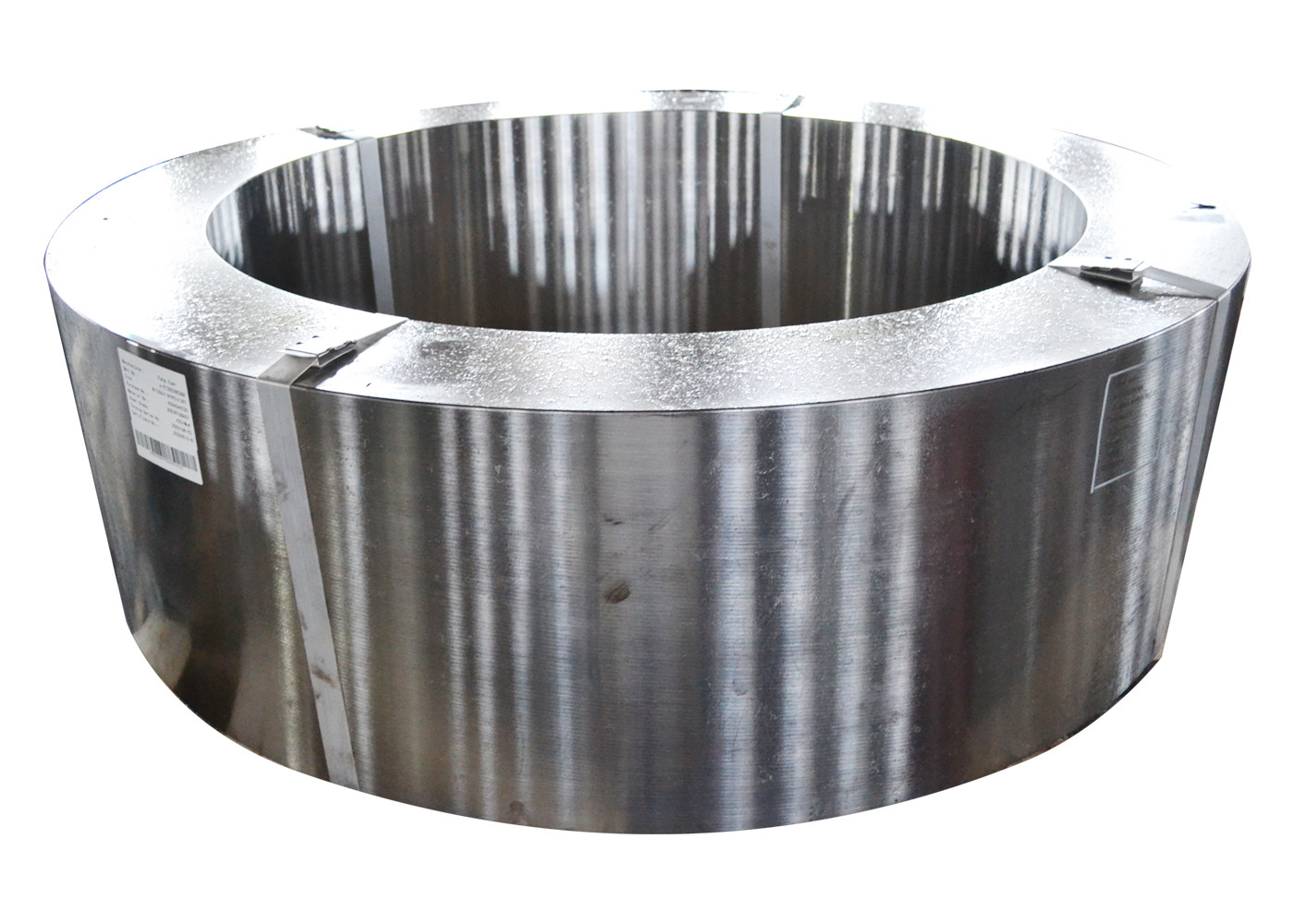

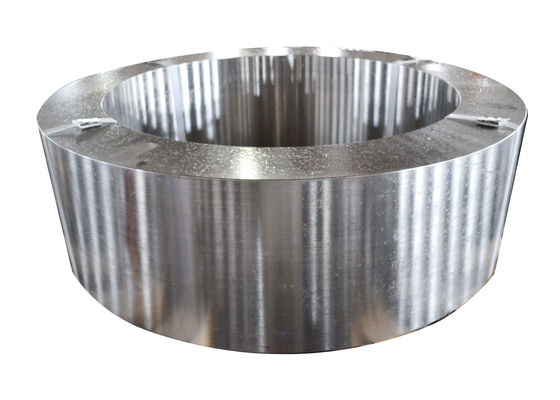

Heat Treatment 2500mm DIN 1.4301 Stainless Steel Forging

Heat Treatment 2500mm DIN 1.4301 Stainless Steel Forging

  • Heat Treatment 2500mm DIN 1.4301 Stainless Steel Forging
  • Heat Treatment 2500mm DIN 1.4301 Stainless Steel Forging
Heat Treatment 2500mm DIN 1.4301 Stainless Steel Forging
Product Details:
Place of Origin: Jiangsu,China
Brand Name: FY
Certification: PED 3.1 Certificates,ABS,BV,DNV,RINA,GL,LR,NK,KR,CCS
Model Number: FY-00121
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: sea worthy packing like wooden case,iron pallet or as customer's order.
Delivery Time: 15-45 work days
Supply Ability: 3000 Tons Per Month
Contact Now
Detailed Product Description
Name: Stainless Steel Forging Dimensions: Max OD Is 2500mm,
Weight: 20Kg-10000Kg Heat Treatment: Solution
Machining: Rough Machining Or Finish Maching Application: Pressure Vessel,Ball Valve,Tube Etc
Standard: DIN
High Light:

DIN 1.4301 Stainless Steel Forging

,

2500mm Stainless Steel Forging

,

DIN 1.4301 rolled ring forging

Heat Treatment 2500mm DIN 1.4301 Stainless Steel Forging



Stainless Steel Forging Details



Material: DIN 1.4301 Stainless Steel

Technology: Cold forging, hot forging, CNC machining, Welding pressed

Surface treatment: sand blast, polishing, painting, powder coating

Machining: grinding, tapping, drilling, cnc machining

Application: constructional equipment, machinery


<1> Short Introduction:



Largest OD:2500mm
Largest Weight:15000kg
Surface Finish:3.2um Ra Or As Required.
Forging Reduction Min:3.1 Or As Required
Rought machining or Finis Machining


<2> Element:



C≤ Si≤ Mn≤ P≤ S≤ Ni Cr
0.07% 1% 2.00% 0.035% 0.030% 8%~11% 18.0~20.0%


<3> Heat Treatment:
Solution

<4> Mechanical Properties:



Item Tensile Strength Yield Strength Elongation Rate Reduction Of Area Hardness
F304 ≥515 Mpa ≥205 Mpa ≥30% ≥50% ...



<5> The main manufacturing equipments:



Name&Description

Capacity

Quantity

3600Thydraulic press

Max. single forging in 18T

1

2000T hydraulic press

Max. single forging in 9T

2

800 hydraulic press

Max. single forging in 5T

1

6T electrical hydraulic hammer

Max.single forging in 5T

1

3T electrical hydraulic hammer

Max.single forging in3T

1

Air hammer

Max.single forging from250kg to 1000kg

7

Forging operation machine

Max.singe forging from20T-5T

7

Heat treatment Furance

Max.8000*5000*1500mm

11

CNC driling machine

Max.5000mm

2

Vertical lathe

From 1600 to 5000mm

60

Horizontal lathe

Max.5000mm

70

Band sawing machine

260-1300mm

36



<6> Company Introduction:
Jiangyin Fangyuan Ringlike Forging Flange Co.Ltd was established in 1993.It’s the member of the Confederation of Chinese Metalforming Industry, Chinese wind energy association, China petroleum & Petro-chemical Equipment Industry Association.

As the leading forging manufacturer in China, our company is specialized in manufacturing forged rings, forged discs, forged shaft ,flanges,valve forging and pressure vessel forgings.

The company covers a total area of 100,000 m2 (square meters), building area of 70,000 m2(square meters). There are 600 staffes in the company. Among them, there are 138 senior engineers and technicians. We also have our own testing center lab. which is able to do chemical analysis, metalloscope test, spectrometer test, mechanical property test and Ut test.
The company has been proved by ISO9001,ISO14001, TUV, API,LRS, GL,BV, ABS,DNV, CCS ,RINA,KR and NK.

The GE,SKF ,ABB and Siemens are our main forgein customers now.I hope that my company could have the opportunity to established a long-term cooperative relationship with you.I hope to receive your inqury soon.


<8> Products process:
Heat Treatment 2500mm DIN 1.4301 Stainless Steel Forging 0
