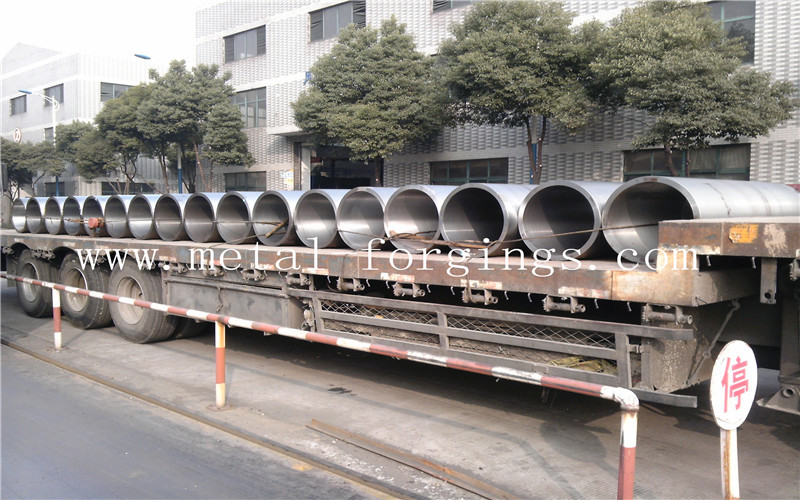

1.4923 Forged Sleeves Blanks Cylinder / Forging Pipe Max OD Is 2500mm

1.4923 Forged Sleeves Blanks Cylinder / Forging Pipe Max OD Is 2500mm

  • 1.4923 Forged Sleeves Blanks Cylinder / Forging Pipe Max OD Is 2500mm
  • 1.4923 Forged Sleeves Blanks Cylinder / Forging Pipe Max OD Is 2500mm
1.4923 Forged Sleeves Blanks Cylinder / Forging Pipe Max OD Is 2500mm
Product Details:
Place of Origin: Jiangsu,China
Brand Name: FY
Certification: PED 3.1 Certificates,ABS,BV,DNV,RINA,GL,LR,NK,KR,CCS
Model Number: FY-0014
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: sea worthy packing like wooden case,iron pallet or as customer's order.
Delivery Time: 15-45 work days
Supply Ability: 3000 Tons Per Month
Contact Now
Detailed Product Description
Material: 1.4923 Stainless Steel Dimensions: Max OD Is 2500mm,
Weight: 20Kg-12000Kg Heat Treatment: Quenching+Tempering
Machining: Rough Machining Or Finish Maching Application: Turbine Guider Ring
Standard: ASME / ASTM-2013
High Light:

1.4923 Forged Sleeves Blanks

,

2500mm Forged Sleeves cylinder

,

2500mm Forged Sleeves Blanks

1.4923 Forged Sleeve Blanks Cylinder Forging Forgings Pipe

(1) Short Introduction:

Largest OD:5000mm
Largest Weight:12000kg
Surface Finish:3.2um Ra Or As Required.
Forging Reduction Min:3.1 Or As Required
Rought machining or Finis Machining


(2) 1.4923 Chemical composition

C:0.18~0.24%Si:0.1~0.5%
Mn:0.4~0.9%P≤0.025%
S≤0.015%Ni:0.3%~0.8%
Cr:11.0~12.5%Mo:0.8~1.2%
V:0.25~0.35%


(3) Heat Treatment:
Quenching In Oil And Tempering.

(4) Mechanical Properties:

ThicknessProof StrengthTensile StrengthElongation After facture A%Reduction in area Z%Impact energyHardness
≤250700 Mpa900-1050Mpa11/10/835/35/3025/20/20265~315
>250700 Mpa850-1050Mpa11/10/835/35/3025/20/20265~315


(5) Certfiticates List:

Certificates list of Jiangyin Fangyuan
ISO9001:2008ISO14001:2004PED Certificate
ABS CertficateBV CertficateDNV Certificate
RINA  CertficateGL  CertficateLR  Certficate
CCS  CertficateNK  CertficateKR  Certficate
API-6A  CertficateAPI-17D  CertficateCNAS  Certficate


(6) The main manufacturing equipments:

Name&Description

Capacity

Quantity

3600Thydraulic press

Max. single forging in 18T

1

2000T hydraulic press

Max. single forging in 9T

2

800 hydraulic press

Max. single forging in 5T

1

6T electrical hydraulic hammer

Max.single forging in 5T

1

3T electrical hydraulic hammer

Max.single forging in3T

1

Air hammer

Max.single forging from250kg to 1000kg

7

Forging operation machine

Max.singe forging from20T-5T

7

Heat treatment Furance

Max.8000*5000*1500mm

11

CNC driling machine

Max.5000mm

2

Vertical lathe

From 1600 to 5000mm

60

Horizontal lathe

Max.5000mm

70

Band sawing machine

260-1300mm

36


(7) Company Introduction:

Jiangyin Fangyuan Ringlike Forging Flange Co.Ltd was established in 1993.It’s the member of the Confederation of Chinese Metalforming Industry, Chinese wind energy association, China petroleum & Petro-chemical Equipment Industry Association.

As the leading forging manufacturer in China, our company is specialized in manufacturing forged rings, forged discs, forged shaft ,flanges,valve forging and pressure vessel forgings.

The company covers a total area of 100,000 m2 (square meters), building area of 70,000 m2(square meters). There are 600 staffes in the company. Among them, there are 138 senior engineers and technicians. We also have our own testing center lab. which is able to do chemical analysis, metalloscope test, spectrometer test, mechanical property test and Ut test.
The company has been proved by ISO9001,ISO14001, TUV, API,LRS, GL,BV, ABS,DNV, CCS ,RINA,KR and NK.

The GE,SKF ,ABB and Siemens are our main forgein customers now.I hope that my company could have the opportunity to established a long-term cooperative relationship with you.I hope to receive your inqury soon.
