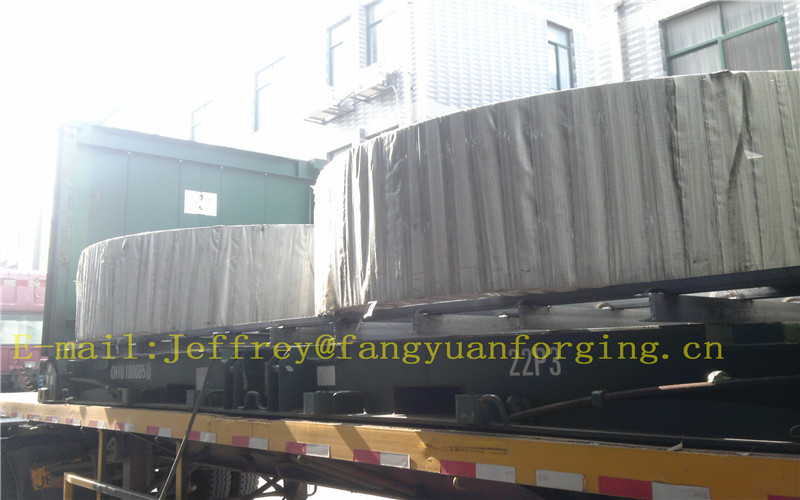

3.2um Ra Surface Finish Carbon Steel Forgings Ring Normalizing Proof Machining

3.2um Ra Surface Finish Carbon Steel Forgings Ring Normalizing Proof Machining

    • 3.2um Ra Surface Finish Carbon Steel Forgings Ring Normalizing Proof Machining
    • 3.2um Ra Surface Finish Carbon Steel Forgings Ring Normalizing Proof Machining
    • 3.2um Ra Surface Finish Carbon Steel Forgings Ring Normalizing Proof Machining
  • 3.2um Ra Surface Finish Carbon Steel Forgings Ring Normalizing Proof Machining

    Product Details:

    Place of Origin: Jiangsu,China
    Brand Name: FY
    Certification: PED 3.1 Certificates,ABS,BV,DNV,RINA,GL,LR,NK,KR,CCS
    Model Number: FY-0014

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PC
    Price: Negotiation
    Packaging Details: sea worthy packing like wooden case,iron pallet or as customer's order.
    Delivery Time: 15-45 work days
    Supply Ability: 3000 Tons Per Month
    Contact Now
    Detailed Product Description
    Material: S235JRG2 1.0038 Dimensions: Max OD Is 5000mm,
    Weight: 30Kg-10000Kg Heat Treatment: Q+T
    Machining: Rough Machining Or Finish Maching Application: Steam Turbine Guider Ring
    Standard: EN10250-2

    S235JRG2 1.0038 EN10250-2  Carbon Steel Forgings Ring Normalizing Proof Machining

    Surface Finish:3.2um Ra Or As Required.
    Forging Reduction Min:3 Or As Required
    Rought machining or Finis Machining

    S235JRG2 1.0038 Chemical Composition:

    C Si Mn P S Cr Mo Ni Cr+Mo+Ni Al
    ≤0.20 ≤0.55 ≤1.40 ≤0.045 ≤0.045 ≤0.30 ≤0.080 ≤0.30 ≤0.48 ≥0.020


    Heat Treatment:Normalized

    Mechanical Properties:

    Thichness mm

    Yield strength
    Mpa
    min

    Tensile strength
    Mpa
    Min

    Elongation
    A%
    min

    Impact Valve
    KV J
    min

    -100 215 340 24/- 35/-
    100-250 175 340 23/17 30/20
    250-500 165 340 23/17 27/15


    Certfiticates List:

    Certificates list of Jiangyin Fangyuan
    ISO9001:2008 ISO14001:2004 PED Certificate
    ABS Certficate BV Certficate DNV Certificate
    RINA  Certficate GL  Certficate LR  Certficate
    CCS  Certficate NK  Certficate KR  Certficate
    API-6A  Certficate API-17D  Certficate CNAS  Certficate


    The main manufacturing equipments:

    Name&Description

    Capacity

    Quantity

    3600Thydraulic press

    Max. single forging in 18T

    1

    2000T hydraulic press

    Max. single forging in 9T

    2

    800 hydraulic press

    Max. single forging in 5T

    1

    6T electrical hydraulic hammer

    Max.single forging in 5T

    1

    3T electrical hydraulic hammer

    Max.single forging in3T

    1

    Air hammer

    Max.single forging from250kg to 1000kg

    7

    Forging operation machine

    Max.singe forging from20T-5T

    7

    Heat treatment Furance

    Max.8000*5000*1500mm

    11

    CNC driling machine

    Max.5000mm

    2

    Vertical lathe

    From 1600 to 5000mm

    60

    Horizontal lathe

    Max.5000mm

    70

    Band sawing machine

    260-1300mm

    36


    Company Introduction:

    Jiangyin Fangyuan Ringlike Forging Flange Co.Ltd was established in 1993.It’s the member of the Confederation of Chinese Metalforming Industry, Chinese wind energy association, China petroleum & Petro-chemical Equipment Industry Association.

    As the leading forging manufacturer in China, our company is specialized in manufacturing forged rings, forged discs, forged shaft ,flanges,valve forging and pressure vessel forgings.

    The company covers a total area of 100,000 m2 (square meters), building area of 70,000 m2(square meters). There are 600 staffes in the company. Among them, there are 138 senior engineers and technicians. We also have our own testing center lab. which is able to do chemical analysis, metalloscope test, spectrometer test, mechanical property test and Ut test.
    The company has been proved by ISO9001,ISO14001, TUV, API,LRS, GL,BV, ABS,DNV, CCS ,RINA,KR and NK.

    The GE,SKF ,ABB and Siemens are our main forgein customers now.I hope that my company could have the opportunity to established a long-term cooperative relationship with you.I hope to receive your inqury soon.
     3.2um Ra Surface Finish Carbon Steel Forgings Ring Normalizing Proof Machining

    Products process:
    The forgings manufacturing and inspecting process are showed in the following picture :
     3.2um Ra Surface Finish Carbon Steel Forgings Ring Normalizing Proof Machining
