| Place of Origin: | Jiangsu,China |
| Brand Name: | FY |
| Certification: | PED 3.1 Certificates,ABS,BV,DNV,RINA,GL,LR,NK,KR,CCS |
| Model Number: | FY-0014 |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | sea worthy packing like wooden case,iron pallet or as customer's order. |
| Delivery Time: | 15-45 work days |
| Supply Ability: | 3000 Tons Per Month |
| Material: | 13CrMo4-5 | Dimensions: | Max OD Is 5000mm, |
|---|---|---|---|
| Weight: | 30Kg-10000Kg | Heat Treatment: | NT Or QT |
| Machining: | Rough Machining Or Finish Maching | Application: | Steam Turbine Guider Ring |
| Standard: | EN10028-2:2003 | ||
| High Light: | forged alloy steel,metal disc |
||
13CrMo4-5 1.7335 EN10028-2 Alloy Steel Forgings Rings Turbine Forging
Surface Finish:3.2um Ra Or As Required.
Forging Reduction Min:3 Or As Required
Rought machining or Finis Machining
13CrMo4-5 Chemica composition:
| % | C | Si | Mn | P | S | Cr | Cu | Al tot | Mo |
| Min | 0.08 | 0.40 | 0.7 | 0.40 | |||||
| Max | 0.18 | 0.35 | 1.00 | 0.025 | 0.010 | 1.15 | 0.30 | 1) | 0.60 |
1)The Al content of the cast shall be determined and given in the inspection document.
Heat Treatment:
Solution annealed
Mechanical Properties:
| Product thickness t mm | Condition | Upper yield strength ReH Mpa min 2) | Tensile strength Rm Mpa | Elongation after fracture A% | Impact energy KVJ(+20℃) |
| -16 | +NT | 300 | 450-600 | 19 | 31 |
| (16)-60 | +NT | 290 | 450-600 | 19 | 31 |
| (60)-100 | +NT | 270 | 440-590 | 19 | 31 |
| (100)-150 | +NT,+QT | 255 | 430-580 | 19 | 31 |
| (150)-250 | +QT | 245 | 420-570 | 19 | 31 |
The main manufacturing equipments:
Name&Description | Capacity | Quantity |
3600Thydraulic press | Max. single forging in 18T | 1 |
2000T hydraulic press | Max. single forging in 9T | 2 |
800 hydraulic press | Max. single forging in 5T | 1 |
6T electrical hydraulic hammer | Max.single forging in 5T | 1 |
3T electrical hydraulic hammer | Max.single forging in3T | 1 |
Air hammer | Max.single forging from250kg to 1000kg | 7 |
Forging operation machine | Max.singe forging from20T-5T | 7 |
Heat treatment Furance | Max.8000*5000*1500mm | 11 |
CNC driling machine | Max.5000mm | 2 |
Vertical lathe | From 1600 to 5000mm | 60 |
Horizontal lathe | Max.5000mm | 70 |
Band sawing machine | 260-1300mm | 36 |
Certfiticates List:
| Certificates list of Jiangyin Fangyuan | ||
| ISO9001:2008 | ISO14001:2004 | PED Certificate |
| ABS Certficate | BV Certficate | DNV Certificate |
| RINA Certficate | GL Certficate | LR Certficate |
| CCS Certficate | NK Certficate | KR Certficate |
| API-6A Certficate | API-17D Certficate | CNAS Certficate |

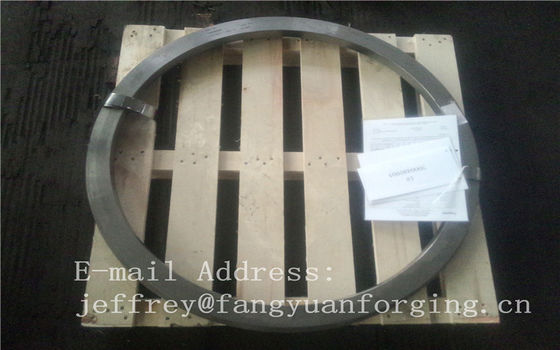

Pitures of Products:
